  • Triple Sugar Iron HiVeg™ Agar
main product photo

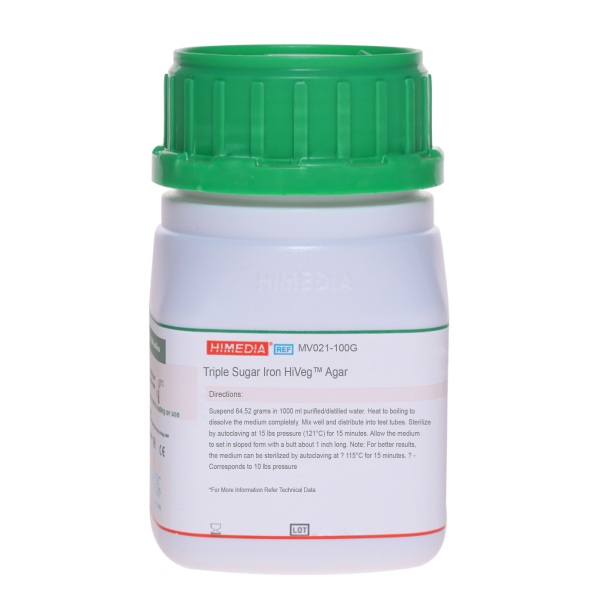

Triple Sugar Iron HiVeg™ Agar

0 Review
As low as ₹1,192.00
Availability: In stock
Only %1 left
SKU:
MV021
For identification of Gram-negative enteric bacilli on the basis of dextrose, lactose and sucrose fermentation and hydrogen sulphide production.

Intended Use

Recommended for identification of gram-negative enteric bacilli on the basis of dextrose, lactose and sucrose fermentation and hydrogen sulphide production.

Composition

Ingredients g/L
HiVeg® peptone 10.000
HiVeg® hydrolysate 10.000
Yeast extract 3.000
HiVeg® extract 3.000
Lactose 10.000
Sucrose 10.000
Dextrose (Glucose) 1.000
Sodium chloride 5.000
Ferrous sulphate 0.200
Sodium thiosulphate 0.300
Phenol red 0.024
Agar 12.000
Final pH (at 25°C) 7.4±0.2

**Formula adjusted, standardized to suit performance parameters
# Equivalent to Beef extract

Directions

Suspend 64.52 grams in 1000 ml purified/distilled water. Heat to boiling to dissolve the medium completely. Mix well and distribute into test tubes. Sterilize by autoclaving at 15 lbs pressure (121°C) for 15 minutes. Cool to 45-50°C. Allow the medium to set in sloped form with a butt about 1 inch long.

Note: For better results, the medium can be sterilized by autoclaving at 10 lbs pressure (115°C) for 15 minutes.

Principle And Interpretation

Triple Sugar Iron HiVeg® Agar is prepared by completely replacing animal based peptones with vegetable peptones, making the medium free of BSE/TSE associated risks. It is the modification of Triple Sugar Iron Agar which was originally proposed by Sulkin and Willett (1) and modified by Hajna (2) for identifying Enterobacteriaceae. The medium is equivalent in performance with the animal based medium recommended by APHA for the examination of meat and food products (3) and milk and dairy products (4). This has also been used in microbial limit test for confirming the presence of Salmonellae(5,6) and in the identification of gram-negative bacilli (5,7).

HiVeg® hydrolysate, HiVeg® peptone, yeast extract and HiVeg® extract provide nitrogenous, carbonaceous compounds, long chain amino acids, trace elements and vitamin B complex etc. Sodium chloride maintains osmotic equilibrium. Lactose, sucrose and dextrose are the fermentable carbohydrates. Sodium thiosulphate and ferrous ions make H2S (hydrogen sulphide) indicator system. Phenol red is the pH indicator. Organisms that ferment glucose produce a variety of acids, turning the colour of the medium from red to yellow. More amounts of acids are liberated in butt (fermentation) than in the slant (respiration). Growing bacteria also form alkaline products from the oxidative decarboxylation of peptone and these alkaline products neutralize the large amounts of acid present in the butt. Thus the appearance of an alkaline (red) slant and an acid (yellow) butt after incubation indicates that the organism is a glucose fermenter but is unable to ferment lactose and/or sucrose. To enhance the alkaline condition of the slant, free exchange of air must be permitted by closing the tube cap loosely. If the tube is tightly closed, an acid reaction caused solely by dextrose fermentation will also involve the slant. Bacteria that ferment lactose or sucrose (or both), in addition to glucose, produce large amounts of acid enables no reversion of pH in that region and thus bacteria exhibit an acid slant and acid butt. Thiosulphate is reduced to hydrogen sulphide by several species of bacteria and H2S (hydrogen sulphide) combines with ferric ions of ferric salts to produce the insoluble black precipitate of ferrous sulphide. Reduction of thiosulphate proceeds only in an acid environment and blackening usually occurs in the butt of the tube.

Acid environment and blackening usually occurs in the butt of the tube. Gas production (CO2) is detected by the presence of cracks or bubbles in the medium, when the accumulated gas escapes. Do not use an inoculating loop to inoculate a tube of TSI, while stabbing the butt, mechanical splitting of the medium occurs, causing a false positive result for gas production. Triple Sugar Iron Agar should be used in parallel with Urea Agar/ Broth (MV112/MV111) to distinguish between Salmonella and Proteus species.

The reactions can be summarized as follows:

  • Alkaline slant / acid butt-only glucose fermented
  • Acid slant / acid butt-glucose and sucrose fermented or glucose and lactose fermented or all the three sugars, glucose, lactose and sucrose fermented.
  • Bubbles or cracks present-gas production
  • Black precipitate present-H2S gas production

Some members of the Enterobacteriaceae and H2S (hydrogen sulphide) producing Salmonella may not be H2S (hydrogen sulphide) positive on TSI Agar. Some bacteria may show H2S (hydrogen sulphide) production on Kligler Iron Agar but not on TSI Agar. This can happen because utilization of sucrose in TSI Agar suppresses the enzymic pathway that result in H2S (hydrogen sulphide) production.

Type of specimen

Pure bacterial isolate from water, food sample.

Specimen Collection and Handling

For food and dairy samples, follow appropriate techniques for sample collection and processing as per guidelines (7, 9).

For water samples, follow appropriate techniques for sample collection, processing as per guidelines and local standards.(1)

After use, contaminated materials must be sterilized by autoclaving before discarding.

Warning and Precautions

Read the label before opening the container. Wear protective gloves/protective clothing/eye protection/ face protection.

Follow good microbiological lab practices while handling specimens and culture. Standard precautions as per established guidelines should be followed while handling specimens. Safety guidelines may be referred in individual safety data sheets.

Limitations :

  1. Some members of the Enterobacteriaceae and H2S producing Salmonella may not be H2S positive on TSI HiVeg® Agar.
  2. Some bacteria may show H2S production on Kligler Iron HiVeg® Agar but not on TSI HiVeg® Agar. This can happen because utilization of sucrose in TSI HiVeg® Agar suppresses the enzymic pathway that result in H2S production.

Performance and Evaluation

Performance of the medium is expected when used as per the direction on the label within theexpiry period when stored at recommended temperature.

Quality Control

Appearance
Light yellow to pink homogeneous free flowing powder

Gelling
Firm, comparable with 1.2% Agar gel.

Colour and Clarity of prepared medium
Pinkish red coloured clear to slightly opalescent gel forms in tubes as slants.

Reaction
Reaction of 6.45% w/v aqueous solution at 25°C. pH: 7.4±0.2

pH
7.20-7.60

Cultural Response

Cultural characteristics observed after an incubation at 35-37°C for 18-24 hours.

Organism Inoculum (CFU) Growth Slant Butt Gas H2S
Citrobacter freundii ATCC 8090 50-100 luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction positive, blackening of medium
# Klebsiella aerogenes ATCC 13048 (00175*) 50-100 luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium
Escherichia coli ATCC 25922 (00013*) 50-100 luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium
Klebsiella pneumoniae ATCC 13883 (00097*) 50-100 luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium
## Proteus hauseri ATCC 13315 50-100 luxuriant alkaline reaction, red colour of the medium acidic reaction, yellowing of the medium negative reaction positive, blackening of medium
Salmonella Paratyphi A ATCC 9150 50-100 luxuriant alkaline reaction, red colour of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium
Salmonella Typhi ATCC 6539 50-100 luxuriant alkaline reaction, red colour of the medium acidic reaction, yellowing of the medium negative reaction positive, blackening of medium
Salmonella Typhimurium ATCC 14028 (00031*) 50-100 luxuriant alkaline reaction, red colour of the medium acidic reaction, yellowing of the medium positive reaction positive, blackening of medium
Shigella flexneri ATCC 12022 (00126*) 50-100 luxuriant alkaline reaction, red colour of the medium acidic reaction, yellowing of the medium negative reaction negative, no blackening of medium
Escherichia coli ATCC 8739 50-100 (00012*) luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium
Klebsiella pneumoniae ATCC 10031 50-100 luxuriant acidic reaction, yellowing of the medium acidic reaction, yellowing of the medium positive reaction negative, no blackening of medium

Key: (*) Corresponding WDCM numbers.

(##) Formerly known as Proteus vulgaris

# Formerly known as Enterobacter aerogenes

Storage and Shelf Life

Store between 10-30°C in a tightly closed container and the prepared medium at 20-30°C. Use before expiry date on the label. On opening, product should be properly stored dry, after tightly capping the bottle in order to prevent lump formation due to the hygroscopic nature of the product. Improper storage of the product may lead to lump formation. Store in dry ventilated area protected from extremes of temperature and sources of ignition Seal the container tightly after use. Product performance is best if used within stated expiry period.

Disposal

User must ensure safe disposal by autoclaving and/or incineration of used or unusable preparations of this product. Follow established laboratory procedures in disposing of infectious materials and material that comes into contact with sample must be decontaminated and disposed of in accordance with current laboratory techniques (4,5).

More Information
Product Name Triple Sugar Iron HiVeg™ Agar
SKU MV021
Product Type HiVeg™
Physical Form Powder
Origin Animal Free (Veg), Lactose
Packaging type HDPE
References 1. Sulkin E.S. and Willett J.C., 1940, J. Lab. Clin. Med., 25:649.
2.Hajna A.A., 1945, J. Bacteriol, 49:516.
3.Salfinger Y., and Tortorello M.L. Fifth (Ed.), 2001, Compendium of Methods for the Microbiological Examination ofFoods, 5th Ed., American Public Health Association, Washington, D.C.
4.Wehr H. M. and Frank J. H., 2004, Standard Methods for the Microbiological Examination of Dairy Products, 17th Ed.,APHA Inc., Washington, D.C.
5.Finegold S. M. and Baron E. J., 1986, Bailey and Scotts Diagnostic Microbiology, 7th Ed., The C.V. Mosby Co., St. Louis.
6.Baird R.B., Eaton A.D., and Rice E.W., (Eds.), 2015, Standard Methods for the Examination of Water and Wastewater,23rd ed., APHA, Washington, D.C.
7.MacFaddin J., 1985, Media for Isolation-Cultivation-Identification-Maintenance of Medical Bacteria, Vol. 1, Williams andWilkins, Baltimore.
8.Isenberg, H.D. Clinical Microbiology Procedures Handb0ook. 2nd Edition.
9.Jorgensen,J.H., Pfaller , M.A., Carroll, K.C., Funke, G., Landry, M.L., Richter, S.S and Warnock., D.W. (2015)Manual of Clinical Microbiology, 11th Edition. Vol. 1.
Customized Product Available No
