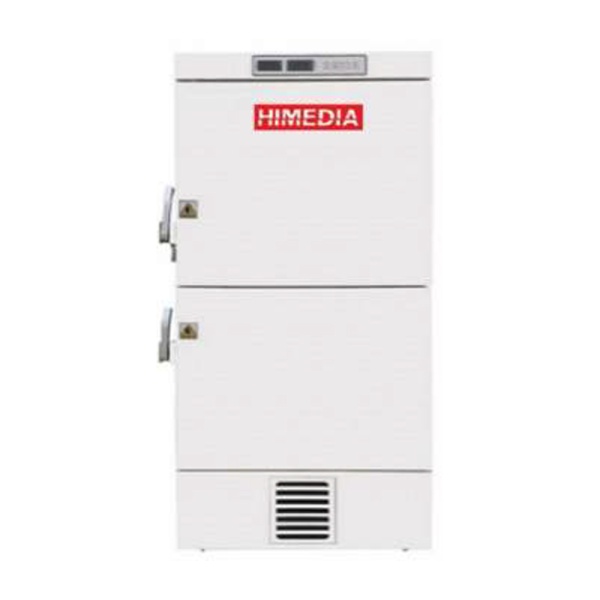

Cellax-Ultra™ -40 °C Laboratory & Biomedical Freezer
- Ideal for preserving biological samples, reagents, vaccines, and laboratory specimens at -40°C.
- Suitable for research laboratories, pharmaceutical industries, and medical facilities.
- Ensures integrity and viability of stored materials for scientific applications.
- Enables long-term storage with temperature stability for sensitive samples.
- Designed for environments requiring a moderate freezing point for sample preservation.
Your enquiry has been submitted
Please login to Post an Enquiry.
| Product Name | Cellax-Ultra™ -40 °C Laboratory & Biomedical Freezer |
|---|---|
| SKU | AI0035 |
| Customized Product Available | No |
| Feature | Specification |
| Construction | Vertical upright |
| Exterior Material | Galvanized steel with antibacterial coating |
| Interior Material | Polished stainless steel (grade 304 2B) |
| Heating Technology | Heater recycler technology |
| Sample Port | Separate with automated decompression vent |
| Alarms | Audible and visible alarms for temperature, power and system |
| Temperature Sensor | Single RTD (PT1000 platinum RTD) |
| Refrigerants | HFC-free, CFC-free, HCFC-free non-flammable refrigerants |
| Stabilizer | 5.0 KVA V-Guard Servo Stabilizer with digital display |
| Noise Level (at -80 °C) | 58.5 dB (System silence) |
| Air Circulation System | Motor and blower for uniform temperature under loaded condition |
| Outer Material (GMP Model) | Stainless steel 304 with key lockable outer door |
| Inner Features (Both Models) | Double wall, 80mm PUF insulation, Inner glass viewing door, |
| Outer Material (Standard Model) | Stainless steel 304 Rack & Trays |
| Trays Material | Outer GI with powder coating and key lockable door |
| Insulation Thickness | Stainless steel 304 |
| Lighting | 80mm, CFC-free, PUF Insulation |
| Refrigeration System | Fluorescent light for interior illumination |
| Control System | Hermetically Sealed CFC Free Emerson Compressor with R134a/R404 refrigerant, bypass system |
| Sensor | PID Temperature controller with 4” Touch Screen display |
| Auto Start | PT 100 Sensor |
| HMI / Display | System starts automatically with default set parameters on power resumption |
| Validation Port | 4” Touch Screen Display |
| Power Supply | 40 mm validation Port |
| Additional Features | 230V AC single phase 50Hz |
| Temperature Range Options | MCB, Heavy-duty latch with lock & key, PU Wheels for easy movement |
| Temperature Accuracy | -20°C to -40°C |
| Temperature Uniformity | ± 3°C |
| Available Double door format | ± 5°C |
| Capacities | 200L, 300L, 400L, 600L, 800L, 1000L |
| Certificate | CE, ISO |
Key Features of Cellax-Ultra™ -40°C (AI0035) & -25°C (AI0036) Freezer
Construction & Design
- Vertical upright design for space optimization
- Exterior made of galvanized steel with zinc and antibacterial coating
- Solid cabinet casing with polished stainless steel to prevent corrosion
- Interior made of polished stainless steel (grade 304 2B) for easy cleaning and oxidation prevention
- Single-hand operation with an ergonomic door handle and integrated key lock
- Individual heated door sealing for temperature retention
Control & Monitorin
- Clear and legible Blue LED display with advanced interface
- Audible and visible alarms for temperature, power failure, system failure, low battery, etc.
- Single RTD (PT1000 platinum RTD) temperature sensor for accuracy control
Energy, Efficiency & Technology
- Eco-friendly insulation for minimal thermal losses (CFC-HCFC-free)
- Efficient hermetically sealed AC compressor system
- Rapid direct in-cooling copper coil with dual condenser fans
- Compressor start delay and stopping interval protection
- Fast temperature recovery with fully microprocessor-controlled system
- Programmable temperature range: -10°C to -26°C with 1°C precision
Additional Features
- Heavy-duty lockable castor wheels for easy portability
- Electrical supply: 220-240 Volts AC (50Hz)
- 5.0 KVA V-Guard Servo Stabilizer with digital display for power stability
- Nearly system-silent noise level (at -80°C) of 58.5 dB.
