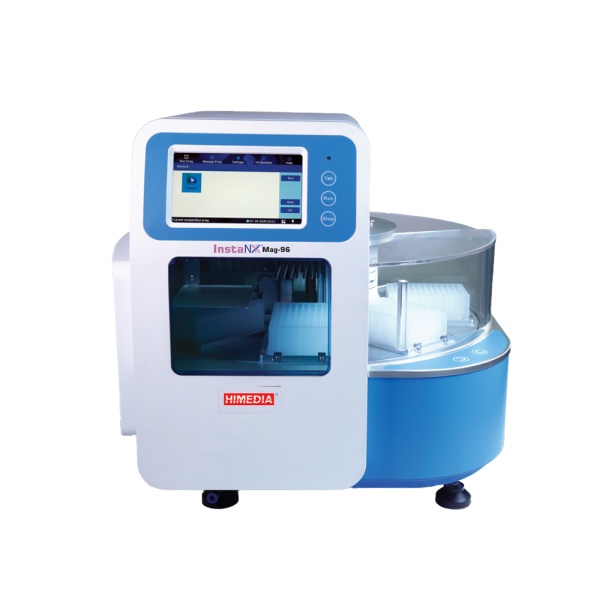

Insta NX® Mag96 Automated Nucleic Acid Extractor
Insta NX® Mag96 Automated Nucleic Acid Extractor System adopts magnetic bead separation technology for purification of DNA and RNA from samples. This instrument is capable of processing samples from 1-96 on a 96 well plate thus enabling high-throughput extraction of nucleic acids. It allows extraction of high quality nucleic acids with minimum human intervention in 11-30minutes.
Your enquiry has been submitted
Please login to Post an Enquiry.
Insta NX® Mag96 Automated Nucleic Acid Extractor System adopts magnetic bead separation technology for purification of DNA and RNA from samples. This instrument is capable of processing samples from 1-96 on a 96 well plate thus enabling high-throughput extraction of nucleic acids. It allows extraction of high quality nucleic acids with minimum human intervention in 30-60minutes.
| Product Name | Insta NX® Mag96 Automated Nucleic Acid Extractor |
|---|---|
| SKU | LA1097 |
| Data Storage | Available, with built-in SD card |
| Input Power | 300W |
| Customized Product Available | No |
| Sample Capacity | 1~96 |
| Process volume | 50 to 1000µl |
| Sample Volume Range | 25 to 400µl |
| Elution Volume | 30µl |
| Consumables | 96 Deep well plate + 96 magnetic rod's tip |
| Working principle | Magnetic beads method |
| Magnetic Rod | 4200 gauss |
| Purification accuracy | 100 copy sample positive rate > 95% |
| Stability | CV<5% |
| Magnetic beads recycling rate | >95% |
| Temperature Range | Room temperature to 120°C |
| Lysis temperature | Room temperature to 1200C |
| Elution temperature | Room temperature to 1200C |
| Mixing | Mixing ways can be editable |
| Operation interface | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Built-in protocol | 8 groups of preset protocols, 100 groups of protocols can be stored |
| Protocol management | New, Edit, Delete, Save as Template, Create. |
| Expansion interface | Standard USB, Ethernet port and RS 232 available |
| Lighting | Yes |
| Sterilization | UV light |
| Exhaust way | By Fan |
| Certification | CE, IVD |
| Accessories | UPS will be provided as per requirement |
Simple, intelligent operation
- Built-in lighting LED lights to monitor the running status of the instrument in real time.
- Easy access to working platform, which is convenient for reagent optimization and observation.
- Intelligent operation with self-inspection, power protection function.
- 8-plate position automatic identification design. No manual adjustment required.
Cross contamination control
- Drip-proof plate design with software controlled magnetic beads drying mode, to prevent spillage during the run.
- Disposable consumables can eliminate the cross contamination between samples and batches.
- It has built-in UV light for sterilization of the internal part of the machine.
Intaitive and Flexible Interphase
- Room temperature + 5˚~120˚, accurate temperature control.
- The software has complete functions and is suitable for all kinds of magnetic bead reagents.
- Diverse binding and magnetic absorption modes, which is conducive to reagent optimization
Reliable structure and stable operation
- Insta NX® Mag96 adopts lead screw drive to realize lifting movement with high precision.
- Structure design with center rotary table which makes it occupy less area.
- Design for automatic loading and unloading structure of magnetic rod tip comb, which guarantee stability and liability. (Success rate>99.99%)
Write Your Own Review

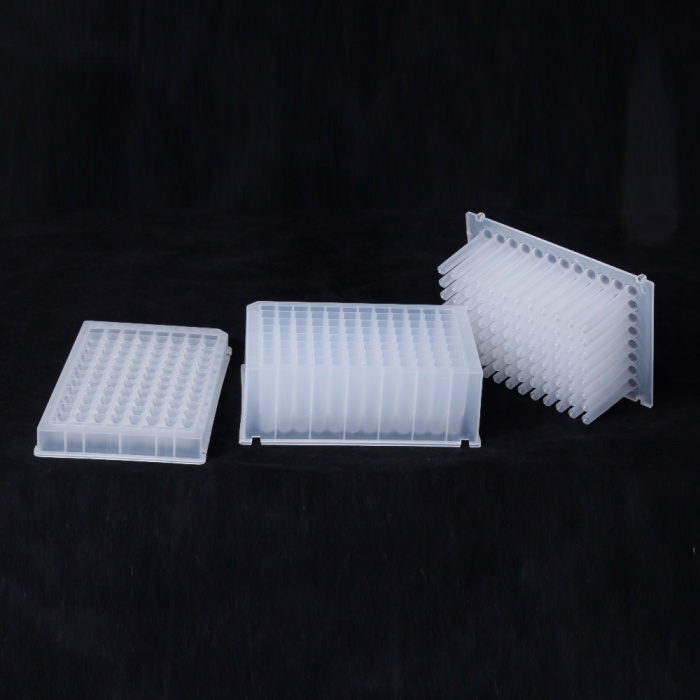

Accessories for Insta NX® Mag96
As low as
₹18,089.00

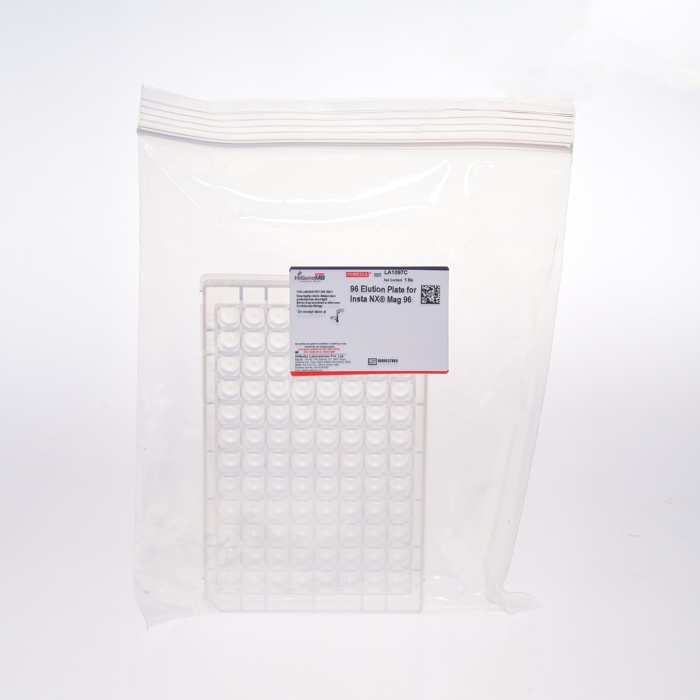

96 Elution Plate for Insta NX® Mag96
As low as
₹1,888.00

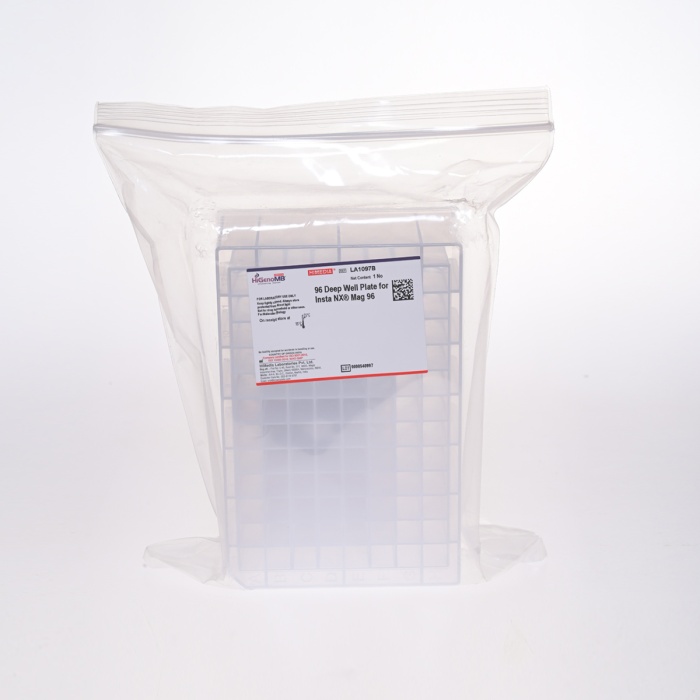

96 DeepWell Plate for Insta NX® Mag96
As low as
₹8,048.00

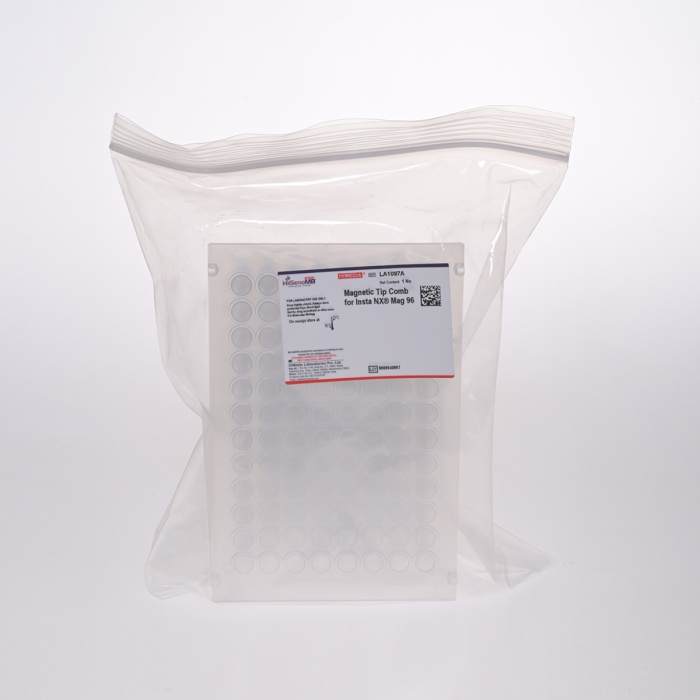

Magnetic Tip Comb for Insta NX® MAg96
