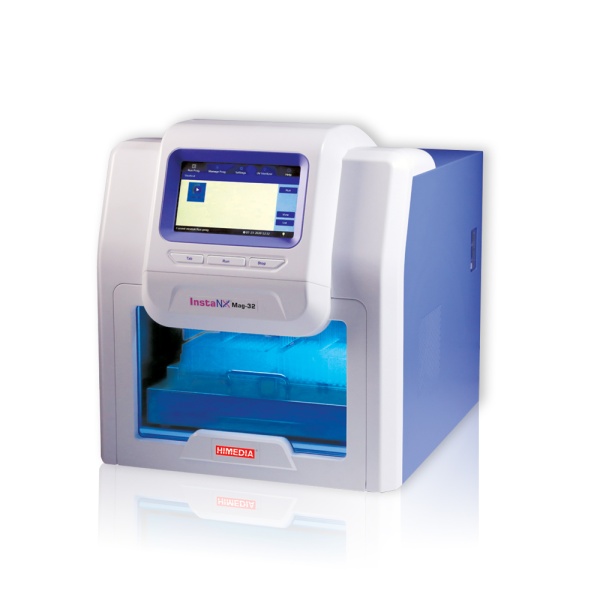

Insta NX® Mag32 Automated Nucleic Acid Extractor
Insta NX® Mag32 Automated Nucleic Acid Extractor is a modern bench top magnetic bead based system for DNA and RNA purification from a wide range of samples. With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and washing to elution, it reduces manual intervention to a bare minimum. This hassle-free extraction system helps one to obtain fine quality ultra-pure DNA and RNA that can be directly used for further downstream processing.
Your enquiry has been submitted
Please login to Post an Enquiry.
Insta NX® Mag32 Automated Nucleic Acid Extractor is a modern bench top magnetic bead based system for DNA and RNA purification from a wide range of samples. With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and washing to elution, it reduces manual intervention to a bare minimum. This hassle-free extraction system helps one to obtain fine quality ultra-pure DNA and RNA that can be directly used for further downstream processing.
Product Intended Use – The Insta NX® Mag 32 and Insta NX® Mag 96 are intended for use in combination with Extractions Kits to perform Automated Purification of Nucleic Acids. The nucleic acids purified using these instruments are suitable for direct downstream analysis by standard amplification methods.
| Product Name | Insta NX® Mag32 Automated Nucleic Acid Extractor |
|---|---|
| SKU | LA1096 |
| Dimension (mm) | 400 × 470 × 450 |
| Net weight (kg) | 25 |
| Data Storage | Available, with built-in SD card |
| Customized Product Available | No |
| Sample Capacity | 1~32 |
| Process volume | 50 to 1000µl |
| Sample Volume Range | 25 to 400µl |
| Elution Volume | 30µl |

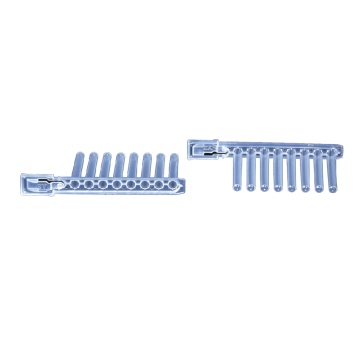

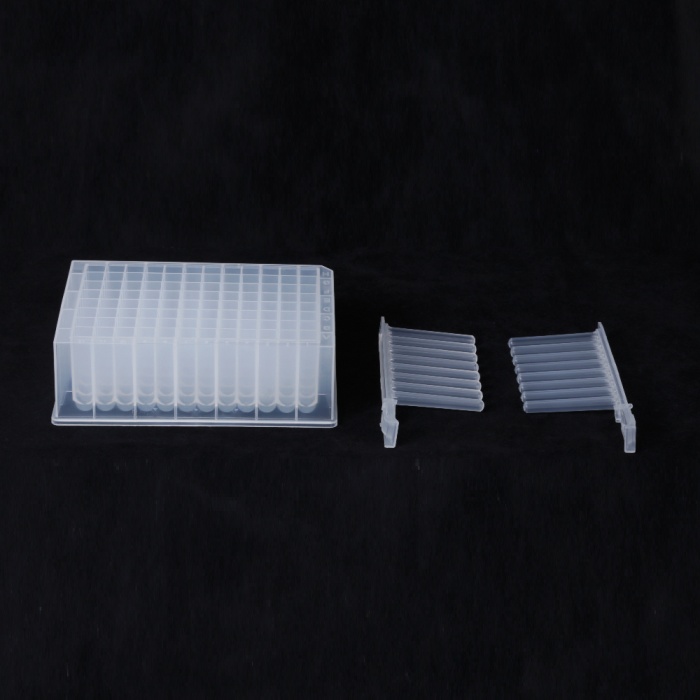

| Consumables | 96 Deep well plate + 8 Well Magnetic rod's tip |
| Working principle | Magnetic beads method |
| Magnetic Rod | 4200 gauss |
| Purification accuracy | 100 copy sample positive rate > 95% |
| Stability | CV<5% |
| Magnetic beads recycling rate | >95% |
| Temperature Range | Room temperature to 120°C |
| Lysis temperature | Room temperature to 1200C |
| Elution temperature | Room temperature to 1200C |
| Mixing | Mixing ways can be editable |
| Operation interface | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Built-in protocol | 8 groups of preset protocols, 100 groups of protocols can be stored |
| Protocol management | New, Edit, Delete, Save as Template, Create. |
| Expansion interface | Standard USB, Ethernet port and RS 232 available |
| Lighting | Yes |
| Sterilization | UV light |
| Exhaust way | By Fan |
| Certification | CE, IVD |
| Accessories | UPS will be provided as per requirement |
- Large 7” touch screen for ease of operation.
- Quick extraction protocols, 13~40 minutes / cycle depending on the sample type and method.
- Pre-installed programs for effortless extraction of nucleic acid.
- In-built sterilization with UV lamp to avoid contamination.
- Compact and closed design to prevent any possible injuries.
- Capable of processing upto 32 samples per run with initial sample volume upto 400μl.
