HiBioKem ID™ Reader

₹0.00

Availability: In stock

SKU:

LA1142

HiBioKemID™ Reader is used to detect changes in the media and analyze the sample to predict the presence of a particular micro-organism. It is ideal for use in quality control programs to quickly screen a large number of samples for checking the presence of a specific pathogen.

■ Rapid identification for microorganisms
■ Automated Detection, Reading and Analysis
■ AI-enabled Learning Technology
■ Strip analyzed and Result generated in seconds
■ Easy-to-Setup & use
■ Store Result easily

Brands:

HiMedia

Description

Intended Use

Recommended for identification of bacteria up to species level.

Key Features

Rapid identification for microorganisms
Automated Detection, Reading and Analysis
AI-enabled Learning Technology
Strip analyzed and Result generated in seconds
Easy-to-Setup & use
Store Result easily

Advantages

Rapid detection of Microbes from various industries like Pharma, Food, Water and Clinical samples.
Saves Labor, Time and minimizes Manual Error
Simple operation steps

Principle

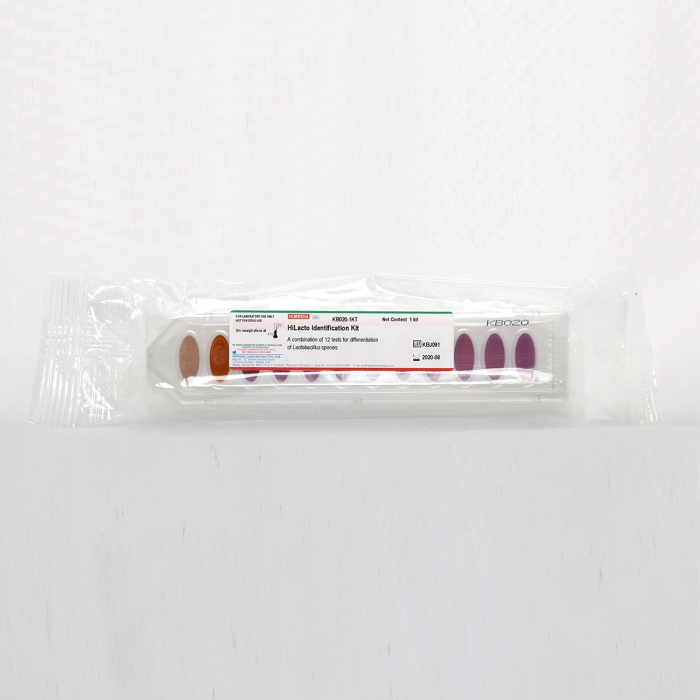

HiBioKemID™ Reader is an automated system designed to be used with KB Biochemical Test kit which is a standardized colorimetric identification system utilizing conventional biochemical tests and carbohydrate utilization tests. The tests are based on the principle of pH change and substrate utilization. On incubation organisms undergo metabolic changes which are indicated by a colour change in the media that can be either interpreted visually or after addition of the reagent.

HiBioKemID™ Reader is used to detect these changes in the media and analyze the sample to predict the presence of a particular micro-organism. It is ideal for use in quality control programs to quickly screen a large number of samples for checking the presence of a specific pathogen.

Once the inoculated strip is placed in the drawer provided, image of the strip will be taken directly. Colours of the wells in strips are detected using camera in controlled environment. Light also can be adjusted to capture accurate colours. After the image is captured, data is analyzed and results are calculated automatically within seconds. Reading time for a single strip is around 5 to 15 seconds. Results are generated and displayed to the user. Results are calculated automatically using a cloud database, making them consistent. User can easily store the results in PDF format on portable drives. The whole process of reading is simple and requires no extensive training.The Database of the system is constantly updated with new research data.

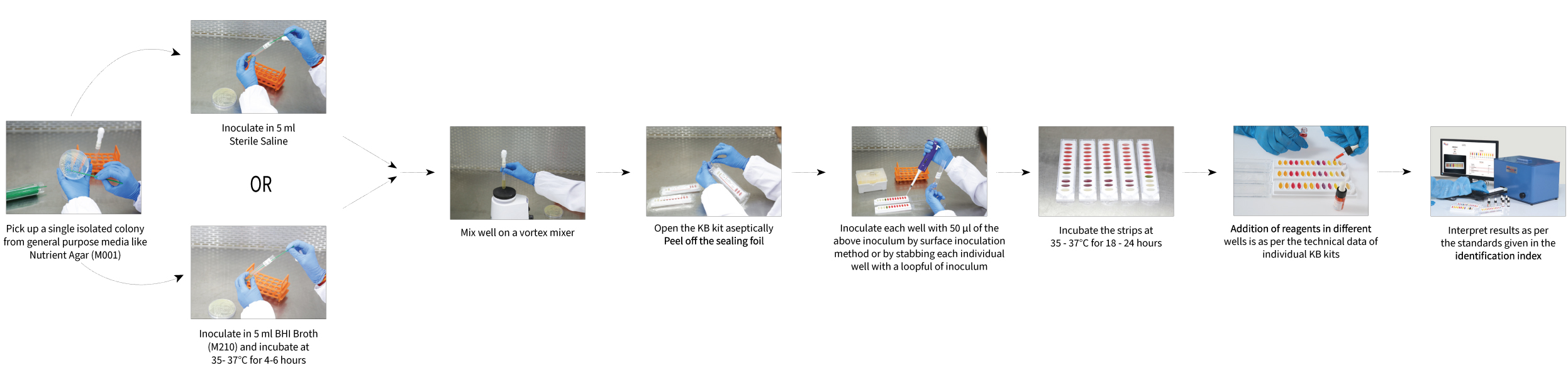

Users Direction

Limitations

The identification index has been compiled from standard references and results of tests carried out in the laboratory.
Pure isolates to be used for accurate identification of three most probable microorganisms.
Further serological or any other specific identification test (like MALDI-TOF MS) needs to be performed for complete identification upto species level.
The KBM series of Motility and Biochemical kit could not be identified in the HiBioKemID™ machine.

Product Information

More Information
Product Name	HiBioKem ID™ Reader
SKU	LA1142
Dimension (mm)	250 x 350 x 220
Net weight (kg)	4
Customized Product Available	No

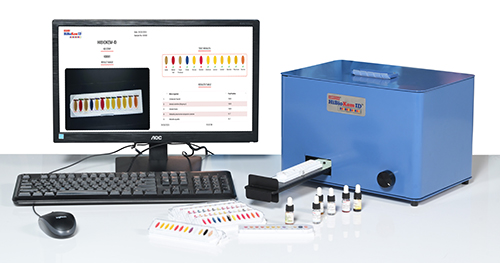

Technical Specifications

Overview	Aluminum body, LAN Connection, Single strip holder.
Reading Time	Around 5 to 15 seconds for a single strip
Camera	Color Camera Cmos Sensor
LED Lighting system	White LED with Black Background
Light Adjustment	Yes
Results/traceability	Image/Test Results/Organism's Probability
Warranty	3 Years
Spare parts availability	7 Years
Input Voltage	240v, 50/60Hz
Data Transfer	2x USB 3.0
Hot lid temperature	30~110, Stepless Adjustment, hot lid with pressure protection
Minimum PC Requirement	Inbuilt Operating System, RAM, LAN Connection, Internet Connection , Monitor, Keyboard, Mouse
Weight	4kg
Dimension	250mm x 350mm x 220mm
Languages	English
