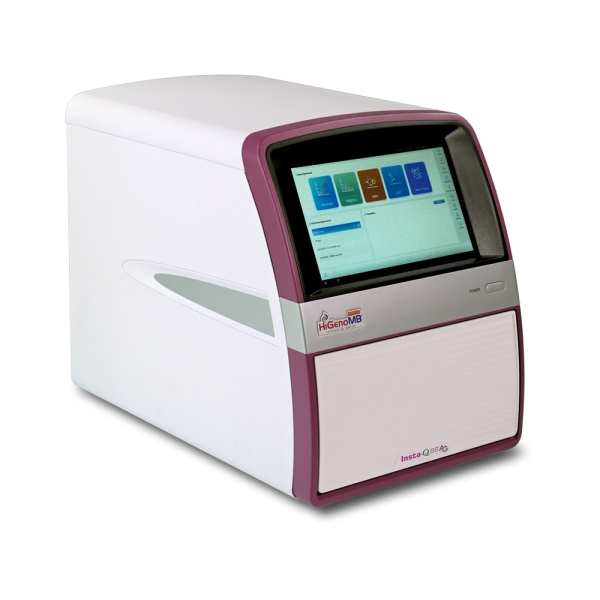

The Insta-Q96® AG series is an advanced Real-Time PCR system engineered for high precision, accuracy, and efficiency in molecular diagnostics and research applications. It integrates cutting-edge thermoelectric refrigeration technology, a high-intensity LED-based excitation source, and a highly sensitive CMOS detection system to ensure reliable performance. With a modular design, the system provides configuration flexibility, making it adaptable for both scientific research and clinical applications. Its combination of innovative features enables superior thermal cycling control, fluorescence detection, and robust data acquisition, ensuring consistent and reproducible results across diverse qPCR workflows.
Product Name | Insta Q96® AG 6.0 |
---|---|
SKU | MBLA028 |
Input Voltage | 100-240V~ 50Hz, 1000VA |
Dimension (mm) | 490 × 290 × 391 |
Net weight (kg) | 28 |
Customized Product Available | No |
Sample capacity | 96 well (0.2ml tubes, strips & plate), 12x8 (0.2 mL) Strips |
Detection Channel | 6 channels |
No of Peltier | 06 units |
Excitation/Detection Source | Filtered 5 & 6 channel LED/Top based CMOS detection filtered |
Reaction Volume | 5-100 µL |
Dynamic Range | 1~1010 Copies |
Excitation / Emission Wavelength | 300-800nm / 500-800nm |
Dyes | F1: FAM, SYBR Green I F2: VIC, HEX, TET, JOE F3: ROX, TEXAS -RED F4: Cy5, Quasar -670 F5: Cy5.5, Quasar -705 F6: TAMRA |
Operating temp range | 4°C-100°C |
Heating rate & Cooling rate | 6°C/s & 5.5°C/s |
Heating & cooling method | Peltier |
Avg Ramp rate | 4°C/s |
Hot Lid temperature | 105°C±5°C |
Temperature control accuracy | 0.1°C |
Temperature uniformity | ±0.3°C |
Temp. Control Mode | Standard / Fast |
Gradient Temp. Range | 1-30 °C ( Zone to Zone , 6 Zones , ± 6°C Max) |
Mode of operation | Continuous operation |
Scan Period | ≤3 seconds for one channel, 12 Sec for all |
Feature Function | • Relative Quantification • Multi-Channel Crosstalk Correction • HRM • SNP Analysis • Gene Study • No passive reference dye required |
Communication Interface | USB, WiFi, Ethernet |
Operation System | Windows11 |
Integrated memory | 100 GB |
Data Export Format | Pdf, text, jpeg, excel, RDML, CSV |
Secure System Function | Secure user log in, Audit trails and electronic records , LIMS enabled, Electronic Signatures |
Input Power | 100-240V~ 50Hz, 1000VA |
Overall Dimensions | 490mm × 290mm × 391mm |
Weight | 28kg |
Certification | CE, IVDR, UL CSA |
