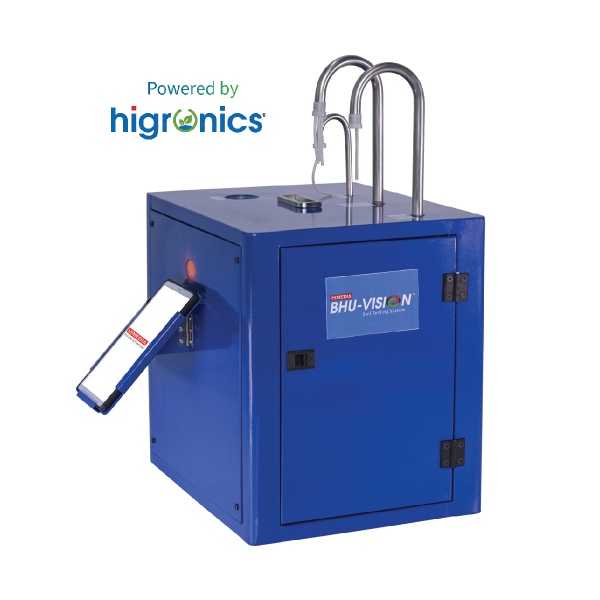

BHU-Vision Soil Testing Device
BHU-Vision (Rapid Automated Soil Analysis Apparatus)- an automated soil analysis system for use in agriculture that is designed to test soil nutrient content and generate a customized fertilizer recommendation on the go.
HiMedia is named as ‘Pride of India’ by Bioscience experts as it is the first registered organization of Indian origin, founded by an Indian scientist for manufacturing microbiology media based on in-house R&D technology.
BHU-Vision (Rapid Automated Soil Analysis Apparatus)- an automated soil analysis system for use in agriculture that is designed to test soil nutrient content and generate a customized fertilizer recommendation on the go.
BHU-Vision device (licensed, manufactured and marketed by himedia), an exclusive technology is developed by Krishitantra and Indian Institute of Rice Research (ICAR – IIRR). The product is validated and developed by 12 scientists of various ICAR institute across India along with Krishitantra team. The accuracy of BHU-Vision is found to be nearly 95% accurate in comparison with conventional methods.
Product Name | BHU-Vision Soil Testing Device |
---|---|
SKU | HG-BHU-STM-01-1NO |
Application/ Industry | Lab, Pharmaceutical |
Storage Temperature(°C) | 25-30 Deg. Celsius (with chemicals) | 15-40 Deg. Celsius (without chemicals) |
Customized Product Available | No |
Weight without chemicals | 12.55 Kg |
---|---|
Power Voltage | 230V AC/ 12 V DC |
Wattage | 24 W |
Operating Temperature | 22-40 Deg. Celsius (for chemicals) |
Storage Temperature | 25-30 Deg. Celsius (with chemicals) 15-40 Deg. Celsius (without chemicals) |
Accessories | Power Supply, EC electrode, pH electrode, weighing scale, 2 Beakers, 3 x 60ml bottles, 3 x 125ml bottles, 3 funnels, 125 ml dropping bottle, 2 x 15ml centrifugal tubes, Controlling Tab , Filter Papers |
Chemical Reagents | Nitrogen-A sachet, Nitrogen-B sachet, Nitrogen-C, Nitrogen-D, Phosphorous, Potassium, Sulfur, Micronutrients- A, Micro-nutrients-B, Micro-nutrients-B salt, Organic Carbon-A, Organic Carbon-B, EC buffer, pH buffer (4 & 7) |
Packaging Contents
The toolkit for BHU-Vision includes the following:
Item | Quantity |
---|---|
BHU-Vision device | 1 |
SMPS/DC power supply | 1 |
60 ml bottle | 3 |
125 ml bottle | 3 |
150 ml bottle | 2 |
250 ml bottle | 1 |
100 ml beaker | 2 |
Electrical Conductivity probe | 1 |
pH probe | 1 |
Funnel | 3 |
Weighing scale | 1 |
Centrifuge tube | 2 |
Tab | 1 |
Pair of Gloves | 2 |
Dimensions | 450mm x 370mm x 440mm |
---|
