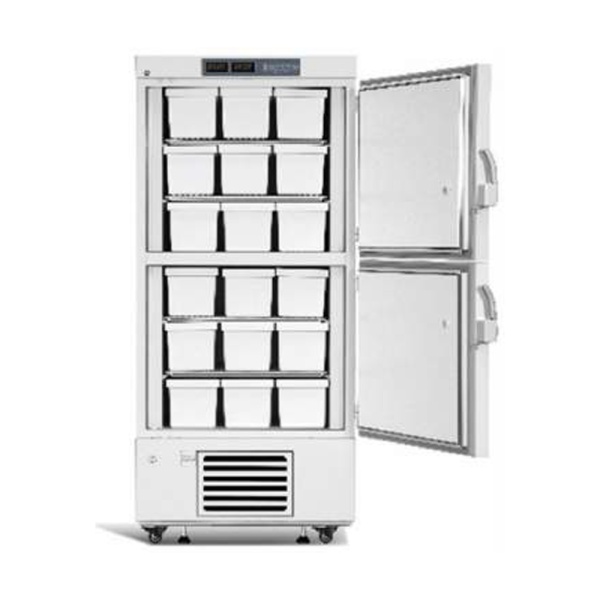

Cellax-Ultra™ -25 °C Laboratory & Biomedical Freezer
- Ideal for preserving biological samples, reagents, vaccines, and laboratory specimens at -25°C.
- Suitable for research laboratories, pharmaceutical industries, and medical facilities.
- Ensures integrity and viability of stored materials for scientific applications.
- Enables long-term storage with temperature stability for sensitive samples.
- Designed for environments requiring a moderate freezing point for sample preservation.
Your enquiry has been submitted
Please login to Post an Enquiry.
| Product Name | Cellax-Ultra™ -25 °C Laboratory & Biomedical Freezer |
|---|---|
| SKU | AI0036 |
| Customized Product Available | No |
| Feature | Specification |
| Design | Vertical Upright |
| Exterior Material | Galvanized steel with zinc and antibacterial coating |
| Cabinet Casing | Solid, with polished stainless steel to prevent corrosion |
| Interior Material | Polished stainless-steel grade 304 2B |
| Door Handle | Ergonomic with integrated key lock for single-hand operation |
| Inner Doors | 4 independent, heated sealing doors to prevent temperature loss |
| Technology | Heater recycler technology for efficient heat recycling |
| Venting | Heated pressure equalization port and separate sample port with automated decompression |
| Shelves | 5 nos height adjustable stainless-steel shelves with compartment doors |
| Security | Keyed locks and padlock-able ergonomic door handle |
| Insulation | Triple reinforced doors with advanced PUF; High-grade vacuumed PUF insulation |
| Environmental Friendliness | CFC-HCFC free insulation; HFC-free, CFC-FREE, HCFC-FREE refrigerants; Green Natural HCGas based system |
| Filter | Easy to remove washable filter for dust protection |
| Compressor | Hermetically sealed AC rotating, 1HP, designed for single phase AC supply |
| Cooling System | Rapid direct-in cooling copper coils with ISI marked air-cooled hermetic compressors |
| Temperature Control | Microprocessor controlled, -10°C to -26°C with 1°C increments; Adjustable Range: -16°C to -25°C |
| Display | Blue LED display, eye-level positioning for easy viewing |
| Alarms | Audible and visible for temperature, power failure, system failure, battery low |
| Temperature Sensor | Single RTD (PT1000 platinum RTD) for monitoring and accuracy |
| Mobility | 4 nos heavy duty lockable castor wheels |
| Power Requirement | 220-240 Volts AC (50Hz) |
| Stabilizer | 5.0 KVA V-Guard Servo Stabilizer with digital display FOC |
| Noise Level | 58.5 dB at -80°C; Nearly silent operation noise level less than 65 dB (A) |
| Backup (Optional) | LN2/CO2 Backup |
| Nominal Voltage | 220-230 Volts, 50-60 Hz Single Phase |
| Certificate | CE, ISO |
| Temperature Accuracy | ± 3°C |
| Temperature Uniformity | ± 5°C |
| Available Double door format Capacities | 200L, 300L, 400L |
| Certificate | CE, ISO |
Key Features of Cellax-Ultra™ -40°C (AI0035) & -25°C (AI0036) Freezer
Construction & Design
- Vertical upright design for space optimization
- Exterior made of galvanized steel with zinc and antibacterial coating
- Solid cabinet casing with polished stainless steel to prevent corrosion
- Interior made of polished stainless steel (grade 304 2B) for easy cleaning and oxidation prevention
- Single-hand operation with an ergonomic door handle and integrated key lock
- Individual heated door sealing for temperature retention
Control & Monitorin
- Clear and legible Blue LED display with advanced interface
- Audible and visible alarms for temperature, power failure, system failure, low battery, etc.
- Single RTD (PT1000 platinum RTD) temperature sensor for accuracy control
Energy, Efficiency & Technology
- Eco-friendly insulation for minimal thermal losses (CFC-HCFC-free)
- Efficient hermetically sealed AC compressor system
- Rapid direct in-cooling copper coil with dual condenser fans
- Compressor start delay and stopping interval protection
- Fast temperature recovery with fully microprocessor-controlled system
- Programmable temperature range: -10°C to -26°C with 1°C precision
Additional Features
- Heavy-duty lockable castor wheels for easy portability
- Electrical supply: 220-240 Volts AC (50Hz)
- 5.0 KVA V-Guard Servo Stabilizer with digital display for power stability
- Nearly system-silent noise level (at -80°C) of 58.5 dB.
