Insta NX® Mag24

Name: Insta NX® Mag24
Brand: HiMedia Laboratories
SKU: MBLA020
Availability: InStock

As low as $0.00

Availability: Out of stock

Availability: In stock

Only %1 left

SKU:

MBLA020

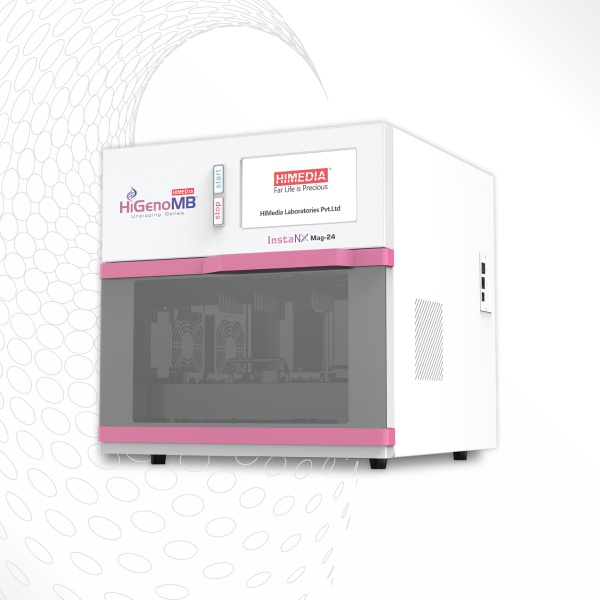

Insta NX® Mag24 Automated All-In-One Extractor is a modern bench top magnetic bead based system for DNA, RNA, recombinant protein and Antibody purification from a wide range of samples with large sample volume input.
With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and washing to elution, it reduces manual intervention to a bare minimum.
Designed for high sensitivity Liquid Biopsy workflows - system is engineered to handle larger sample volume delivering higher cfDNA yield, which improve detection of low frequency variants better performance in NGS, qPCR, ddPCR and reliable results for early cancer detection, MRD & NIPT.

Download Catalogue

Sample Capacity	1~24
Process volume	50μL-10ml/50μL-5ml
Sample volume range	Nucliec Acid - Upto 5ml, Protein - 400μL-5ml/400μL - 10ml
Elution volume	Nucliec Acid - 25 to 250μL (can be optimized based on assay suitability), Protein - 100-1000μL
Working principle	Magnetic beads-based method
Consumable	5 mL tube strips/ 10 mL tube strips + 8 well magnetic rod’s tip, Can be processed Single Sample Cartridge (PRE-FILLED)
Magnetic Rod gauss	4900 gauss
Purification accuracy	100 copy sample positive rate>95 %
Stability	CV<5 %
Collection efficiency	>95 %
Pause function	Yes
Lysis & Elution temperature	Room temperature to 120°C
Operation interface	7-inch touch screen, 2 shortcut buttons
Sterilization	UV Light
Internal program	Preset 8 programs, max store 100 programs
Protocol management	Create, edit, delete, protocol mode
Extension interface	2 standard USB port, Ethernet port
