Insta NX® Mag24

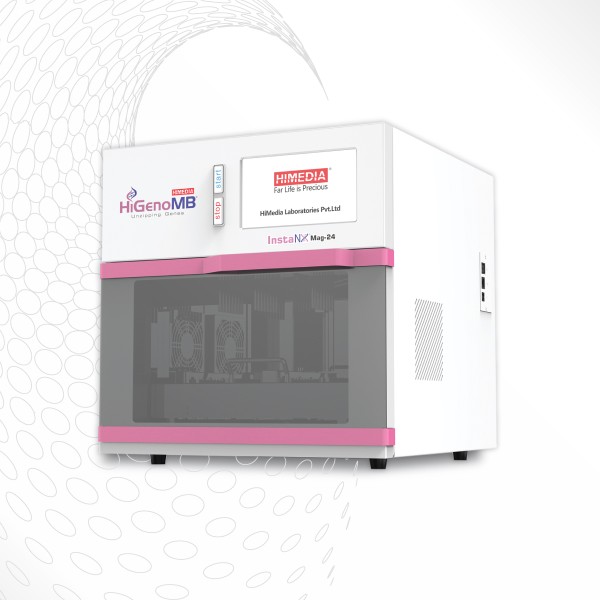

- Insta NX® Mag24 Automated Nucleic Acid Extractor is a modern bench top magnetic bead based system for DNA and RNA purification from a wide range of samples.
- With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and
washing to elution, it reduces manual intervention to a bare minimum. - Especially suitable for cfDNA extraction, nucleic acid sample library construction, blood nucleic acid screening, and nucleic acid hypersensitivity detection.
Your enquiry has been submitted
Please login to Post an Enquiry.
• Insta NX® Mag24 Automated Nucleic Acid Extractor is a modern bench top magnetic bead based system for DNA and RNA
purification from a wide range of samples.
• With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and washing to elution, it reduces manual intervention to a bare minimum.
• Especially suitable for cfDNA extraction, nucleic acid sample library construction, blood nucleic acid screening, and nucleic acid hypersensitivity detection.
• With built-in magnetic rods to transfer particles through the entire process of purification starting from binding, mixing and washing to elution, it reduces manual intervention to a bare minimum.
• Especially suitable for cfDNA extraction, nucleic acid sample library construction, blood nucleic acid screening, and nucleic acid hypersensitivity detection.
| Product Name | Insta NX® Mag24 |
|---|---|
| SKU | MBLA020 |
| Input Power | 100-240V, 50-60Hz, 450W |
| Customized Product Available | No |
| Sample Capacity | 1~24 |
| Process volume | 50~10000 μL/50~5000 μL |
| Working principle | Magnetic beads-based method |
| Consumable | 5 mL tube strips + magnetic rod’s tip/10 mL tube strips + magnetic rod's tip |
| Magnetic Rod gauss | 4900 gauss |
| Purification accuracy | 100 copy sample positive rate>95 % |
| Stability | CV<5 % |
| Collection efficiency | >95 % |
| Lysis temperature | Room temperature to 120°C |
| Elution temperature | Room temperature to 120°C |
| Operation interface | 7-inch touch screen, 2 shortcut buttons |
| Sterilization | UV Light |
| Internal program | Preset 8 programs, max store 100 programs |
| Protocol management | Create, edit, delete, protocol mode |
| Extension interface | 4 standard USB port, Ethernet port, WiFi, built-in SD card |
- UV Sterilization
- Process sample Capacity
- Fast Extraction
- Easy to Use
- 7” Touchscreen
