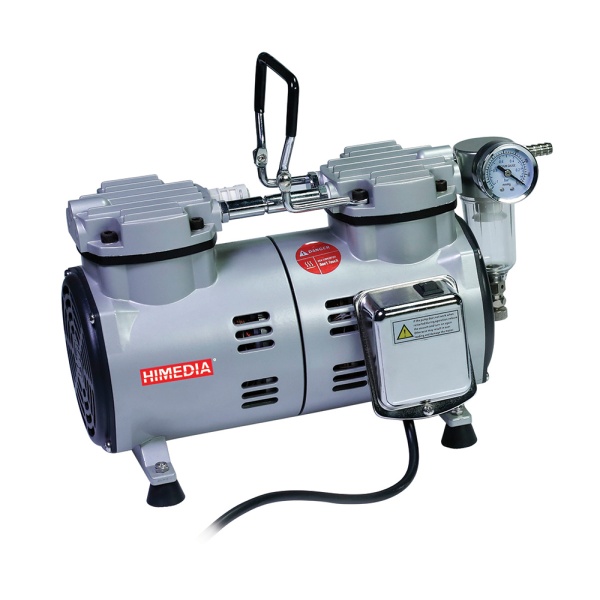

HiVac - 400 Vacuum Pump
HiVac series vacuum pump is a piston-powered, oil-free pump. With innovative electronic, mechanical technology and human design concept make, compact and light weight, clean and maintenance free, safe and comfortable.
Application Areas
• Microbiological detection • Liquid filtration • Biology laboratories • Food industry • Vacuum drying • Suspended solids measurement
Your enquiry has been submitted
Please login to Post an Enquiry.
Features
No air pollution, maintenance freeHiVac series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
Moisture trap with filter cartridge
HiVac series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.
Vacuum regulator
HiVac series pumps are equipped with vacuum regulator to adjust vacuum.
Thermal protection device
Every motor opumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
| Model | HiVac - 300 | HiVac - 400 |
|---|---|---|
| Power (V / Hz) | 220 / 50 | 220 / 50 |
| Max. power (W) | 60 | 80 |
| Max. current (A) | 0.3 | 0.4 |
| Max. vacuum (mbar) | 100 | 100 |
| Max. flow rate (L/min) | 17 | 34 |
| Motor rotation (RPM) | 1450 | 1450 |
| Port thread (mm) | 9 | 9 |
| Dimension WxDxH (mm) | 272 × 142 × 165 | 310 × 152 × 165 |
| Weight (kg) | 4.4 | 5.4 |
| Noise level (dB) | 50 | 60 |
| Product Name | HiVac - 400 Vacuum Pump |
|---|---|
| SKU | LA1081 |
| Customized Product Available | No |
