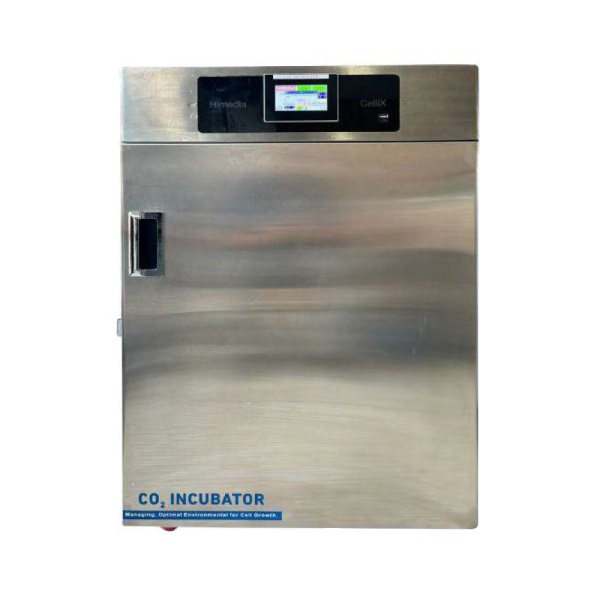

CellIx-PRO CO₂ Incubator, 80L
- Touch screen display:4" / 7"
- Customize your CellIx-PRO incubator with these options
- Ethernet and USB interfaces are available
- UV Sterilization-UV Incubator sterilization can be performed with 4W UV lamp
Brands:
Your enquiry has been submitted
Please login to Post an Enquiry.
- Customize your CellIx-PRO incubator with these options
- Ethernet and USB interfaces are available
- UV Sterilization-UV Incubator sterilization can be performed with 4W UV lamp
- Hot Air Sterilization- Incubator sterilization can be performed using dry heat(140/180°C)
- Copper has natural bactericidal & fungicidal properties. Copper surface eliminate microbial contaminants quickly & effectively.
- Multi gas supply (N2 & O2) can be made available for both the models
- 5/6 Split Door options available. Helps in lower gas consumption, lower heat loss & faster recovery.
- 80 programs (Optional Feature)
- Touch screen display:4" / 7"
| Product Name | CellIx-PRO CO₂ Incubator, 80L |
|---|---|
| SKU | AI005P |
| Application/ Industry | Hospitals, Lab, Pharmaceutical |
| Temperature Range | Ambient (+5 to +60) |
| Dimension (mm) | 520 x 390 x 490 |
| Net weight (kg) | 38 |
| Customized Product Available | No |
Specifications
| Volume (L) | 80 |
|---|---|
| Sterilization | AI005UV-P, AI005HS-P |
| Temperature (°C) Range | Ambient + 5°C to 50°C |
| Temperature (°C) Accuracy | ± 0.1°C (37°C) |
| Temperature (°C) Resolution | 0.1°C |
| Temperature (°C) Control | Digital PID |
| Uniformity | < +/- 0.3°C or better |
| CO2 Range | 0% ~ 20% |
| CO2 Accuracy | ± 0.1% (5% CO₂) |
| CO2 Resolution | 0.1% |
| CO2 Sensor | IR C02 Sensor |
| CO2 Control |
Microprocessor
|
| CO2 Inlet pressure range | M4.5 psi or 0.3 bar |
| Display | LED Display, 1. Alpha numeric message for HEPA filter replacement 2. Access code to lock the parameters |
| External Casing Material | Mild Coated Steel/Textured Stainless Steel (S.S 304/ S.S 316) |
| Rear Housing Material | Zinc-Plated Stainless Steel (S.S 304/ S.S 316) |
| Chamber Interior Material Humidity Control | Corrosion-Resistant Stainless Steel/Copper Oxide Coated (S.S 304/ S.S 316) 93 +/- 2.5% Rh |
| Shelves | Minimum 3 Stainless Steel shelves, accommodation for 3 additional grids/shelves |
| Heating System | Direct heating system, elements on 6 sides for temp homogeneity and to avoid condensation |
| CO2 Circulation | 1) Small fan for circulation 2) Fanless Design; in-line air filters of 0.22 μm (optional) |
| Controller Accuracy | 0.1°C or better |
| Mechanical Temperature Limiter | Yes, to protect from overheating in case of controller failure |
| PT 100 Sensors | 2 independent sensors with auto switch-over in case of failure |
| Over Temperature Protection | Adjustable controller class 3.3 or limiter class 2, selectable on display |
| Display Features | High-res TFT color displays, temp in °C/°F, graphical display |
| Data Logger | Stores test data for ~8 years |
| Interfaces | Ethernet and USB, programming software included (optional with extra cost) |
| Program Storage | 5, 20 & 80 programs, display of actual parameters with time (optional with extra cost) |
| Recalibration | Recalibrate without external PC |
| Power Supply | 230V, 50/60Hz |
| Warranty | 2 years + 3 years AMC |
| Certifications | ISO 9001, CE, IEC-61010 |
| Documentation | Operation manual, training at commissioning |
| Accessories (Optional) | CO2 Cylinder, Double Stage Regulator and Stabilizer |
| Warranty (Optional) | 3 Years |
