In the demanding environments of laboratories and clinical settings, the stability and integrity of vaccines, medications, and other temperature-sensitive materials are paramount. The CellaxTM Laboratory & Biomedical Refrigerator is expertly designed to meet these needs, ensuring the effectiveness and longevity of your critical storage.
Product Name | Cellax™ Vaccine/pharmacy Storage Laboratory & Biomedical Refrigerator (AI0037V) |
---|---|
SKU | AI0037V |
Temperature Range | 2-8°C (5°C Set point ) |
Input Voltage | 230V AC single phase 50Hz |
Customized Product Available | No |
Specification | Detail |

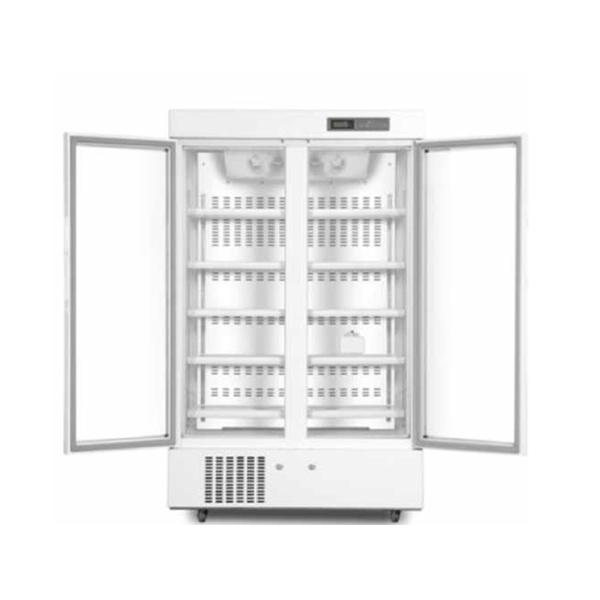

Model Type | Vertical, Upright, Pharmaceutical Refrigerator Single Glass Door / Vertical, Upright, Pharmaceutical Refrigerator Two Glass Door |
Construction | Standard Model / GMP Model |
Exterior Material | Mild steel with powder coating (Standard) / Stainless steel 304 (GMP) |
Interior Material | Stainless steel 304 |
Defrost | Auto |
Insulation | 80mm Thick CFC free PUF Insulation |
Door | Key lockable outer door, Inner glass viewing door / Key lockable outer door |
Trays | Stainless steel 304 Rack & Trays |
Observation Window | 300 x 300 mm |
Lighting | Interior illumination with Fluorescent light |
Refrigeration System | Hermetically Sealed CFC Free Emerson Compressor with R 134a/R404 refrigerant having state of art by pass system for continues run of compressor |
Control System | Microprocessor control PID Temperature controller with 4” Touch Screen display |
Temperature Sensor | PT 100 Sensor |
Auto Start | System restarts automatically with default set parameter after power failure |
HMI/Display | 4 “Touch Screen Display |
Validation Port | 40 mm validation Port |
Power Supply | 230V AC single phase 50Hz |
Additional Features | MCB, Heavy duty latch with lock & key, PU Wheels for easy movement |
Temperature Range | 2-8°C (5°C Set point ) |
Temperature Accuracy | ± 0.5° C |
Temperature Uniformity | ± 1° C |
Supply | 230V / 25A / 50 Hz / 208-230V, 60Hz |
Capacity | 200,400, 600, 800, 1000 |
Certificate | ISO, CE |
