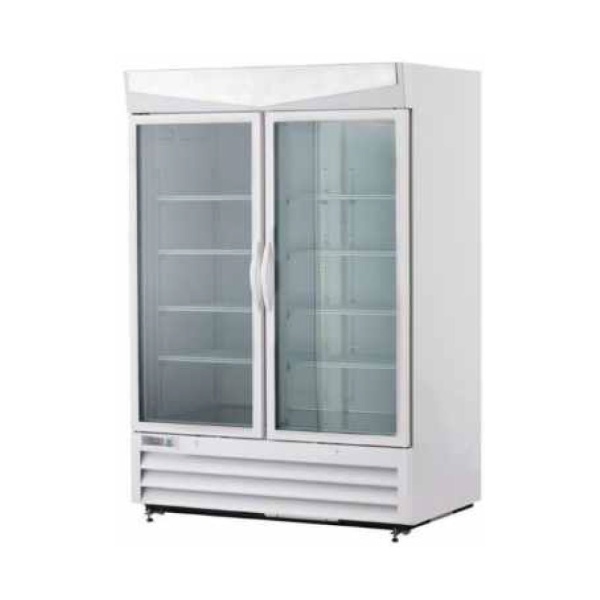

Cellax™ High-Performance Chromatography Refrigerator (AI0037C)
High-performance cooling systems provide accurate temperature control and support for chromatography instruments and samples in chambers..
Applications: Chromatography materials, samples, instrumentation and supplies
Storage Capacity: 23 – 72 cu. ft. (650 -2038L)
Size configurations: Single Glass Door / Double Glass Door
Your enquiry has been submitted
Please login to Post an Enquiry.
The Cellax™ high-performance chromatography refrigerators are engineered for applications demanding precise temperature control, with features tailored for chromatography setups. Designed to store chromatography supplies, reagents, samples, and other materials used in chromatography applications.
Offer precise temperature control, typically within the range of 2°C to 8°C, to protect sensitive materials from temperature variations. Feature access ports for the passage of cables and tubing, facilitating the connection of equipment inside the refrigerator to external chromatography instruments.
- Heat-free defrost for even temperature.
- Forced air for uniform temperatures.
- GMP Clean Room Class A / ISO 6 compatible.
- Two 2" insulated access ports.
- Four casters, front two lockable.
- Bright LED lighting.
- Adjustable epoxy-coated shelves; optional drawers.
- Keyed on/off switch with security.
- Self-closing doors with a 90° hold-open feature (except REC4504).
- Built-in remote alarm contacts.
- Optional 4-20 mA output for data logging.
| Product Name | Cellax™ High-Performance Chromatography Refrigerator (AI0037C) |
|---|---|
| SKU | AI0037C |
| Temperature Range | 2-8°C (5°C Set point ) |
| Input Voltage | 230V / 25A / 50 Hz |
| Customized Product Available | No |
| Specification | Detail |
| Model Type | Vertical, Upright, Pharmaceutical Refrigerator Single & Double Glass Door |
| Construction | Standard Model / GMP Model |
| Exterior Material | Mild steel with powder coating (Standard) / Stainless steel 304 (GMP) |
| Interior Material | Stainless steel 304 |
| Defrost | Auto |
| Insulation | 80mm Thick CFC free PUF Insulation |
| Door | Key lockable outer door, Inner glass viewing door |
| Trays | Stainless steel 304 Rack & Trays |
| Observation Window | 300 x 300 mm |
| Lighting | Interior illumination with Fluorescent light |
| Refrigeration System | Hermetically Sealed CFC Free Emerson Compressor with R 134a/R404 refrigerant having state of art by pass system for continues run of compressor |
| Control System | Microprocessor control PID Temperature controller with 4” Touch Screen display |
| Temperature Sensor | PT 100 Sensor |
| Auto Start | System restarts automatically with default set parameter after power failure |
| HMI/Display | 4 “Touch Screen Display |
| Validation Port | 40 mm validation Port |
| Power Supply | 230V AC single phase 50Hz |
| Additional Features | MCB, Heavy duty latch with lock & key, PU Wheels for easy movement |
| Temperature Range | 2-8°C (5°C Set point ) |
| Temperature Accuracy | ± 0.5° C |
| Temperature Uniformity | ± 1° C |
| Supply | 230V / 25A / 50 Hz / 208-230V, 60Hz |
| Capacity | 200,400, 600, 800, 1000 |
| Certificate | ISO, CE |
