Insta NX® Mag16Plus

Name: Insta NX® Mag16Plus
Brand: HiMedia Laboratories
SKU: MBLA018
Availability: InStock

As low as $0.00

Availability: Out of stock

Availability: In stock

Only %1 left

SKU:

MBLA018

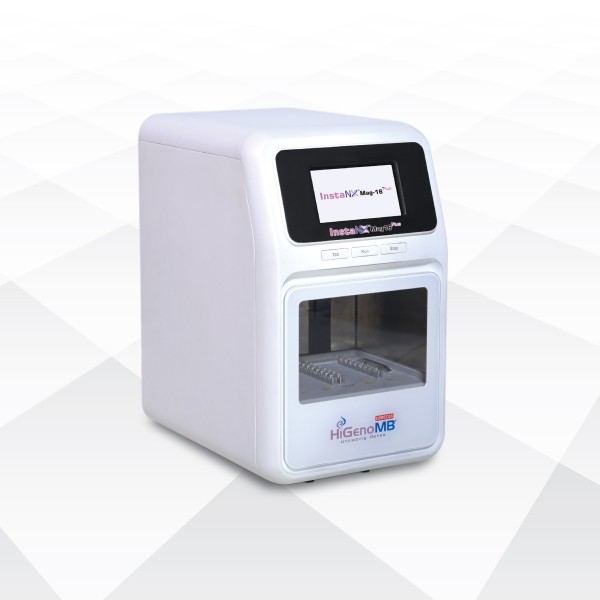

Insta NX® Mag16Plus Automated Nucleic Acid Extractor is a State-of-the- Art for automatic extraction and purification of DNA/RNA
These adsorb, transfer and release magnetic beads. The magnetic rod’s tip are used to separate magnetic beads and samples expeditious
Users can extract 1-16 samples at a time. Different kinds of samples can be extracted for e.g. animal/human tissue, blood, serum, plasma and body fluids etc. Can be processed with magnetic bead based nucleic acid extraction reagents

Download Catalogue

Sample Capacity	1~16
Process volume	50 to 1000μl
Sample Volume Range	25 to 1000μl
Elution Volume	25-250μl (can be optimized based on assay suitability)
Consumables	Single sample cartridge or 96 Deep well plate + 8 well magnetic rod’s tip
Working principle	Magnetic bead based method
Magnetic Rod	4200 gauss
Purification accuracy	100 copy sample positive rate > 95%
Stability	CV<3%
Collection Efficiency	>95%
Pause Function	>Yes
Lysis & Elution temperature	Room temperature to 120°C
Mixing	Mixing ways can be edited
Operation interface	4.3 inch Touch Screen, 3 shortcut buttons
Built-in protocol	8 groups of preset protocols, 100 groups of protocols can be stored
Protocol management	Protocols can be created, edited, deleted or save as templates
Expansion interface	Standard USB, Ethernet port and RS 232 available
Lighting	Yes
Sterilization	UV light
Exhaust way	By Exhaust Fan
Certifiation	CE, IVDR, ANVISA, USFDA
