Insta Q96® AG

0 Review

As low as ₹0.00

Availability: In stock

Only %1 left

SKU:

MBLA027

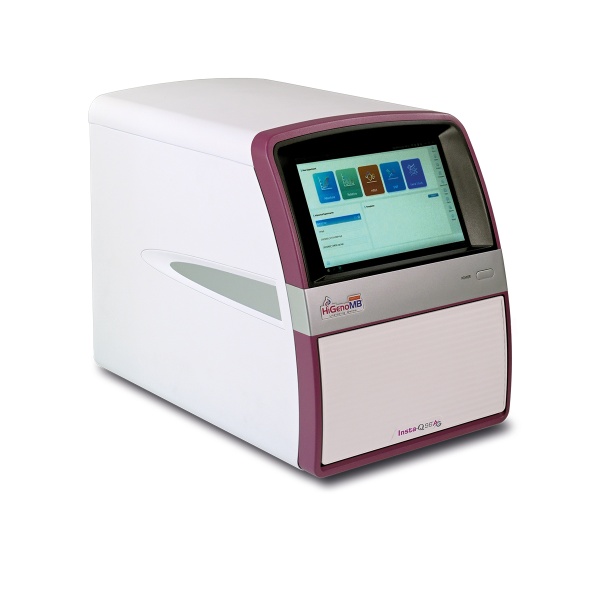

Insta-Q96® AG is Inbuilt touch screen RTPCR system based on the excellent quality of the Insta-Q96® family, using the thermoelectric refrigeration technology, a light source and optical circuit design. The unique constant current power supply and 6-zone independent temperature control method ensure that the product is fast, accurate and stable in fluorescence quantitative analysis. The product adopts modular design, with a variety of configuration options, at the same time, the addition of temperature gradient, sample 4°C cryopreservation, automatic dehumidification and other functions, fully meet the scientific research and clinical medical needs.

Description

Features

10” Inbuilt touchscreen for ease operation
Top imaging photoelectric detection
6 Segment thermal cycling module
Automatic pop-up sample bin
Intelligent adjustable hot cover
Easy to operate software system

Product Information

More Information
Product Name	Insta Q96® AG
SKU	MBLA027
Input Voltage	100-240V~ 50Hz, 1000VA
Dimension (mm)	490 × 290 × 391
Net weight (kg)	28
Customized Product Available	No

Technical Specifications

Sample capacity	96 well (0.2ml tubes, strips & plate)
Detection Channel	5 channels
Dyes	F1: FAM, SYBR Green I F2: VIC, HEX, TET, JOE F3: ROX, TEXAS -RED F4: Cy5, Quasar -670 F5: Cy5.5, Quasar -705
Operating temp range	4°C-100°C
Maximum Block Ramp Rate	6.0°C/s
Heating rate	6°C/s
Cooling rate	5.5°C/s
Hot Lid temperature	105°C±5°C
Temperature control accuracy	0.1°C
Temperature uniformity	±0.3°C
Mode of operation	Continuous operation
Feature Function	• Absolute Quantification • Gene Studies • HRM • Relative Quantification • SNP Analysis • Gradient Function
Input Power	100-240V~ 50Hz, 1000VA
Overall Dimensions	490mm × 290mm × 391mm
Weight	28kg
Certification	CE, IVD
