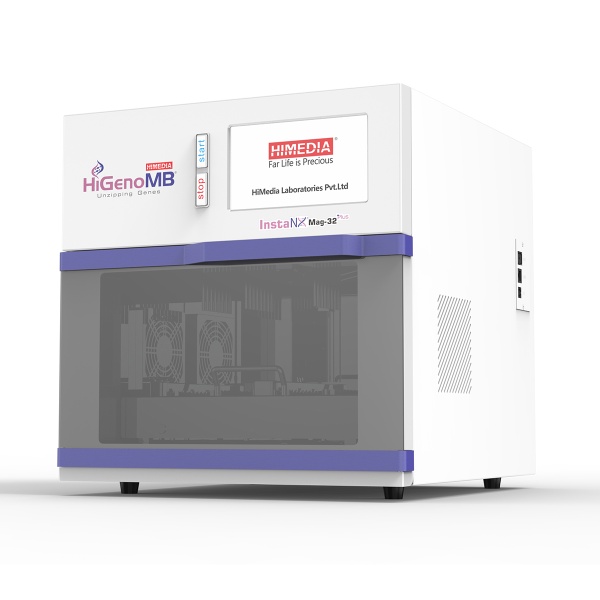

Insta NX® Mag32Plus
Automated Nucleic Acid Extractor
Sample Capacity 1~32
Process volume 50 to 1000 μL
Sample volume Range 25 to 800 μL
Elution volume 25 to 100 μL
Working principle Magnetic beads-based method
Consumable 96 Deep well plate + 8 well magnetic rod’s tip
Magnetic Rod gauss 4200 gauss
Your enquiry has been submitted
Please login to Post an Enquiry.
| Product Name | Insta NX® Mag32Plus |
|---|---|
| SKU | MBLA019 |
| Dimension (mm) | 430 × 400 × 460 |
| Net weight (kg) | 28 |
| Customized Product Available | No |
| Sample Capacity | 1~32 |
| Process volume | 50 to 1000 μL |
| Sample volume Range | 25 to 800 μL |
| Elution volume | 25 to 100 μL |
| Working principle | Magnetic beads-based method |
| Consumable | 96 Deep well plate + 8 well magnetic rod’s tip |
| Magnetic Rod gauss | 4200 gauss |
| Purification accuracy | 100 copy sample positive rate>95 % |
| Stability | CV<5 % |
| Collection efficiency | >95 % |
| Lysis & Elution temperature | Room temperature to 120°C |
| Operation interface | 7-inch touch screen, 2 shortcut buttons |
| Sterilization | UV Light |
| Internal program | Preset 8 programs, max store 100 programs |
| Protocol management | Create, edit, delete, protocol mode |
| Extension interface | 2 standard USB port, Ethernet port, WiFi, built-in SD card |
