Insta NX® Mag16Plus

As low as ₹0.00

Availability: In stock

Only %1 left

SKU:

MBLA018

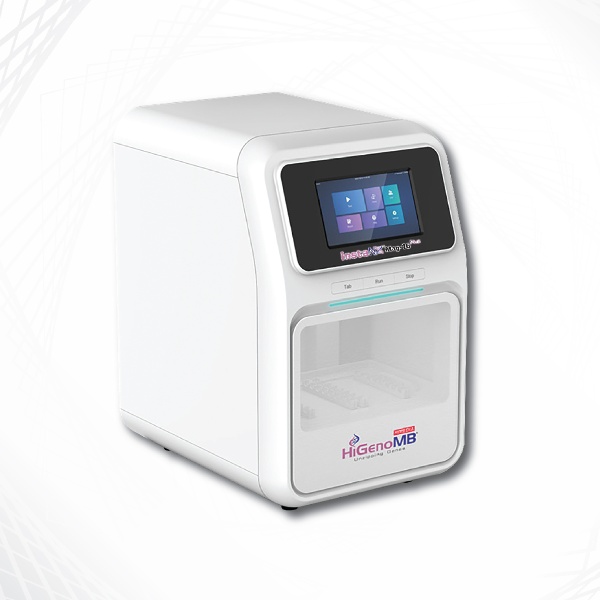

Insta NX® Mag16Plus Automated Nucleic Acid Extractor is a State-of-the- Art for automatic extraction and purification of DNA/RNA

Brands:

Insta NX® Mag16Plus Automated Nucleic Acid Extractor is a State-of-the- Art for automatic extraction and purification of DNA/RNA

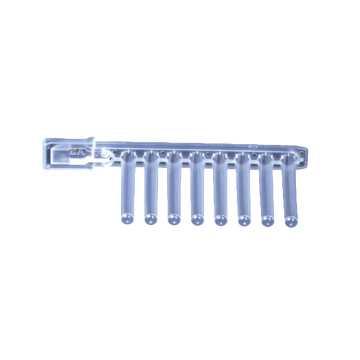

These adsorb, transfer and release magnetic beads. The magnetic rod’s tip are used to separate magnetic beads and samples expeditious
Users can extract 1-16 samples at a time. Different kinds of samples can be extracted for e.g. animal/human tissue, blood, serum, plasma and body fluids etc. Can be processed with magnetic bead based nucleic acid extraction reagents

More Information
Product Name	Insta NX® Mag16Plus
SKU	MBLA018
Application/ Industry	Lab, Pharmaceutical
Temperature Range	Room Temperature To 120°C
Data Storage	Available
Input Voltage	DC24V, 160W
Dimension (mm)	208 x 258 x 315
Net weight (kg)	8.5
Customized Product Available	No

Sample Capacity	1~16
Process volume	50 to 1000μl
Sample Volume Range	25 to 800μl
Elution Volume	50μl (can be optimized upto 25μl based on assay suitability)

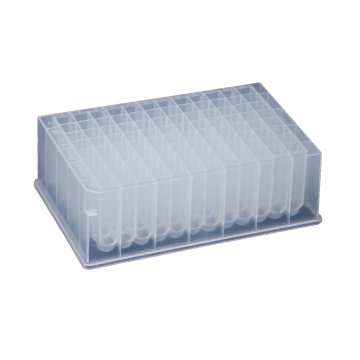

Consumables	Single sample cartridge or 96 Deep well plate + Special magnetic rod's tip

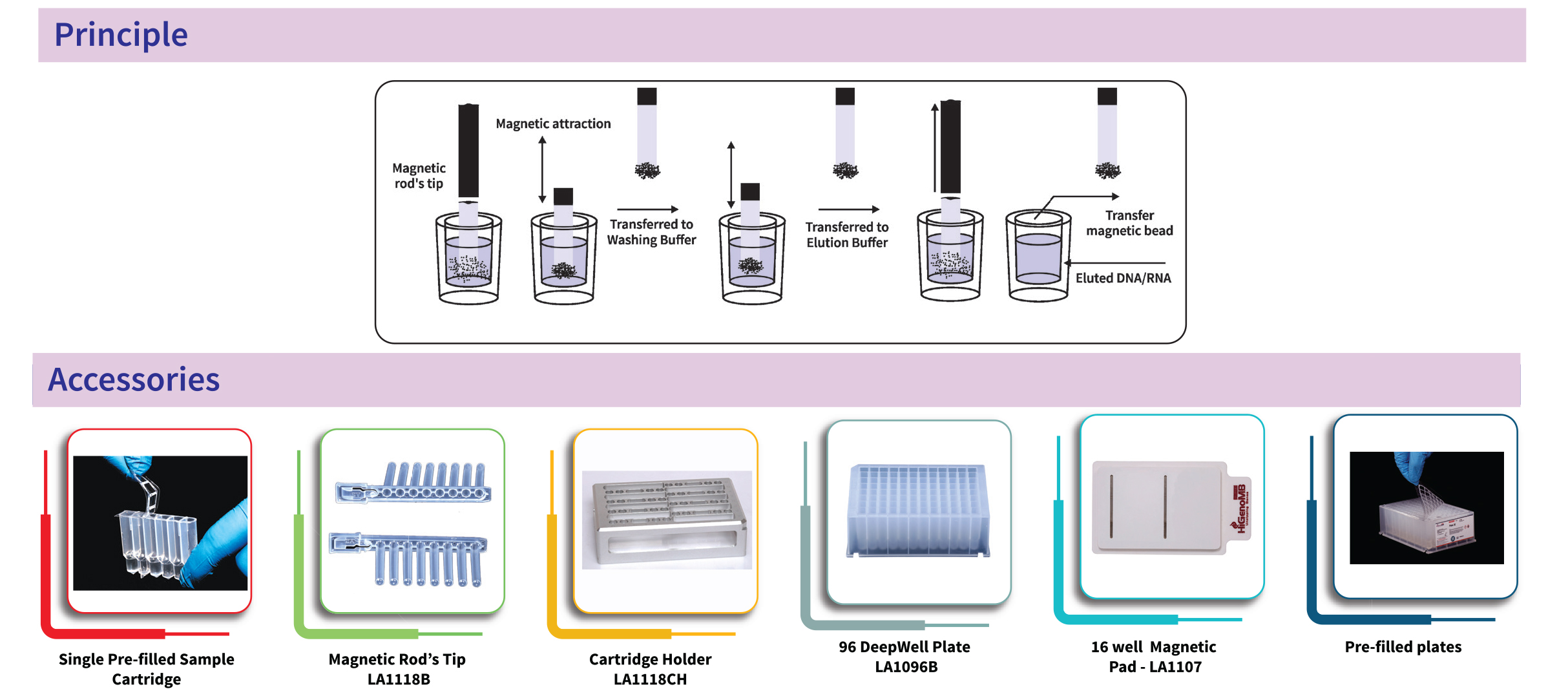

Working principle	Magnetic bead based method
Magnetic Rod	4200 gauss
Purification accuracy	100 copy sample positive rate > 95%
Stability	CV<3%
Magnetic beads recycling rate	>95%
Temperature Range	Room temperature to 120°C
Lysis temperature	Room temperature to 120°C
Elution temperature	Room temperature to 120°C
Mixing	Mixing ways can be edited
Operation interface	4.3 inch
Built-in protocol	8 groups of preset protocols, 100 groups of protocols can be stored
Protocol management	Protocols can be created, edited, deleted or save as templates
Expansion interface	Standard USB, Ethernet port and RS 232 available
Lighting	Yes
Sterilization	UV light
Exhaust way	By Exhaust Fan
Max. input power	DC24V, 160W
Dimension (WxDxH)	208 x 258 x 315 mm
Weight	8.5 Kg
Certifiation	CE, IVD, ANVISA
