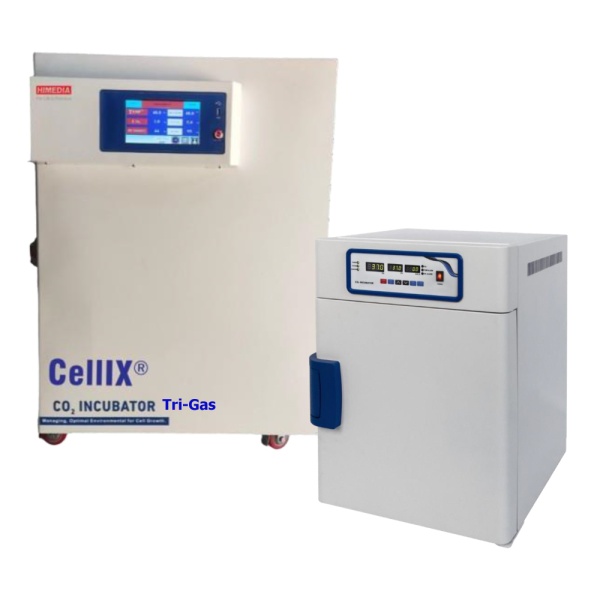

CellIx Tri-Gas COâ‚‚ Incubator (UV Sterilization)
Our incubators offer unparalleled growth conditions and contamination prevention for vital cell cultures. With a diverse range catering from small to large capacities, these incubators are engineered with patented Water Jacket and Air Jacket systems. This innovative design minimizes condensation risk, ensuring optimal and consistent performance now and in the future. Whether for research or clinical applications, CellIX COâ‚‚ incubators provide reliable and advanced solutions for all your cell culture needs.
Your enquiry has been submitted
Please login to Post an Enquiry.
Options for your Tri-Gas COâ‚‚ incubator
- Access Port:
25mm port available on the left side (upon request, additional charge).
- UV Sterilization:
4W UV light positioned on the chamber ceiling and next to the circulation fan, sterilizing without affecting samples during culturing.
- Copper Chamber:
Customizable with copper plate chamber for enhanced contamination protection.
- O2 Control:
Multi-gas supply (N2 & O2) available for all COâ‚‚ incubators.
- Hot Air Sterilization:
Maximum 180℃ dry hot air with no need to remove the IR CO₂ sensor.
- Monitoring System:
Analog connection port for real-time monitoring even from a distance.
- Efficient Gas and Heat Management
1. Lower gas consumption and heat loss.
2. Faster recovery and easy classification with 5 split doors and 6 split doors option.
- Air Jacket with 90°C Steam Sterilization
- USB Port & LCD Touch Screen for Real-Time Data
- High-Quality Infrared Sensors for Accurate COâ‚‚/O2 Levels
- Easy-to-Clean
- SMC brand gas circuit valves ensure stable gas concentration with minimal gas consumption.
- Push-Pull Shelves for Better Temperature Uniformity
- Microcomputer Controller with LCD Display
- Three-Liter Water Reservoir for High Humidity
| Product Name | CellIx Tri-Gas COâ‚‚ Incubator (UV Sterilization) |
|---|---|
| SKU | AI006UV-T-1NO |
| Input Voltage | 230V, 50/60Hz |
| Dimension (mm) | 560 x 620 x 945 |
| Net weight (kg) | 78 |
| Customized Product Available | No |
Specifications
| Model | AI006UV-T-1NO |
|---|---|
| Volume (L) | 180 |
| Temperature (°C) Range | Ambient+5 ~ 60 |
| Temperature (°C) Accuracy | ± 0.1°C (37°C) |
| Temperature (°C) Resolution | 0.1°C |
| Temperature (°C) Control | Digital PID |
| Uniformity | < +/- 0.3°C or better |
| CO2 Range | 0% ~ 20% |
| CO2 Accuracy | ±0.1% (5% / 37℃) |
| CO2 Resolution | 0.1% |
| CO2 Sensor | IR COâ‚‚ Sensor, Range 0~20% |
| CO2 Control | Microprocessor |
| Inlet Pressure Range [bar] | 0.6 ~ 0.7Â |
| Oâ‚‚ Range | 0.6 ~ 85% |
| Oâ‚‚ Sensor | IR Oâ‚‚ Sensor |
| Display | LED Display, |
| Operating Panel | Individual 2-Channel Touch Button |
| Jacket Type | Dry Wall Type (six-side gradient heating design) |
| Chamber Material | Stainless Steel (304) / (316) |
| Number of Shelves | 3/6 |
| Chamber Dimension [mm] | 473 x 528 x 710 |
| Overall Dimension [mm] | 560 x 620 x 945 |
| Weight [kg] | 78 |
| Humidification Type | Water reservoir in the bottom chamber ensures high humidity (90%≤relative humidity≤99%) |
| Sterilization Type | With 90°C moist heat decontamination function (95%≤humidity≤99%RH) |
<h3>6 Sides Direct Heating System:</h3>
Electric heating wire covers all chamber sides, ensuring uniform temperature and fast recovery. Each of the 3 heating sections is individually controlled and calibrated.
<h3>Dry Wall and Air Jacket:</h3>
Warm air from the heating wire is preserved between the chamber and insulation layer, enhancing temperature recovery and minimizing heat loss. Requires no regular maintenance.
<h3>Dual Beam IR COâ‚‚ Sensor:</h3>
Provides fast and precise COâ‚‚ detection, unaffected by temperature and humidity.
<h3>Natural Humidification:</h3>
Bottom heater warms water in the tray, with the circulation fan distributing moisture throughout the chamber.
<h3>No Condensation:</h3>
Front door and frame heaters prevent condensation inside the chamber and on the glass door.
<h3>Microprocessor PID Control:</h3>
Intelligent control for COâ‚‚ density, temperature, alarms, and optional automatic decontamination.
<h3>HEPA Filtration:</h3>
Ensures clean air and moisture convection within the chamber.
<h3>Alarm System</h3>:
Buzzer alerts for COâ‚‚ or temperature deviations.
<h3>Over Heating Limit:</h3>
Safety device cuts heating if temperature control fails or exceeds set points.
<h3>Perforated Shelves:</h3>
Stainless steel shelves allow natural air flow and resist rust and contamination.
