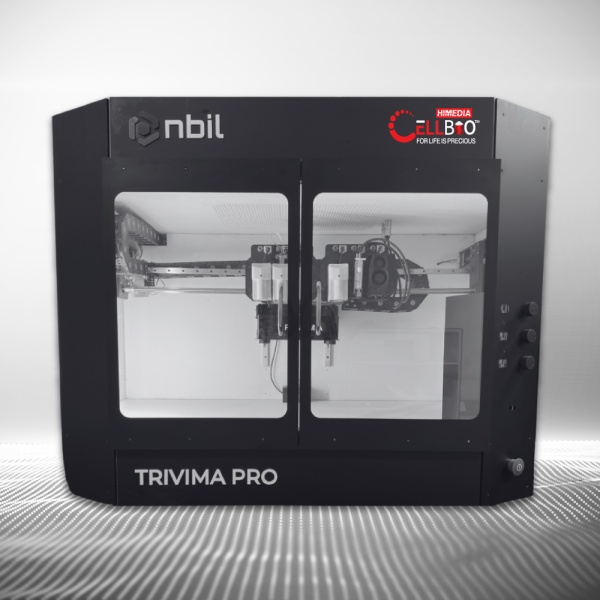

Trivima Pro 3D Bioprinter
TRIVIMA Pro 3D Bioprinter AI0115: Dual Mode Pneumatic Heads
Pneumatic Extruders with Temperature Control operated using Trivima's dual mode temperature control system that ranges from 8˚C to 80˚C, Swappable for 3cc, 5cc and 10cc syringe configurations. Compatible Biomaterials : Natural Biomaterials, Synthetic Biomaterials and Bioceramics
Your enquiry has been submitted
Please login to Post an Enquiry.

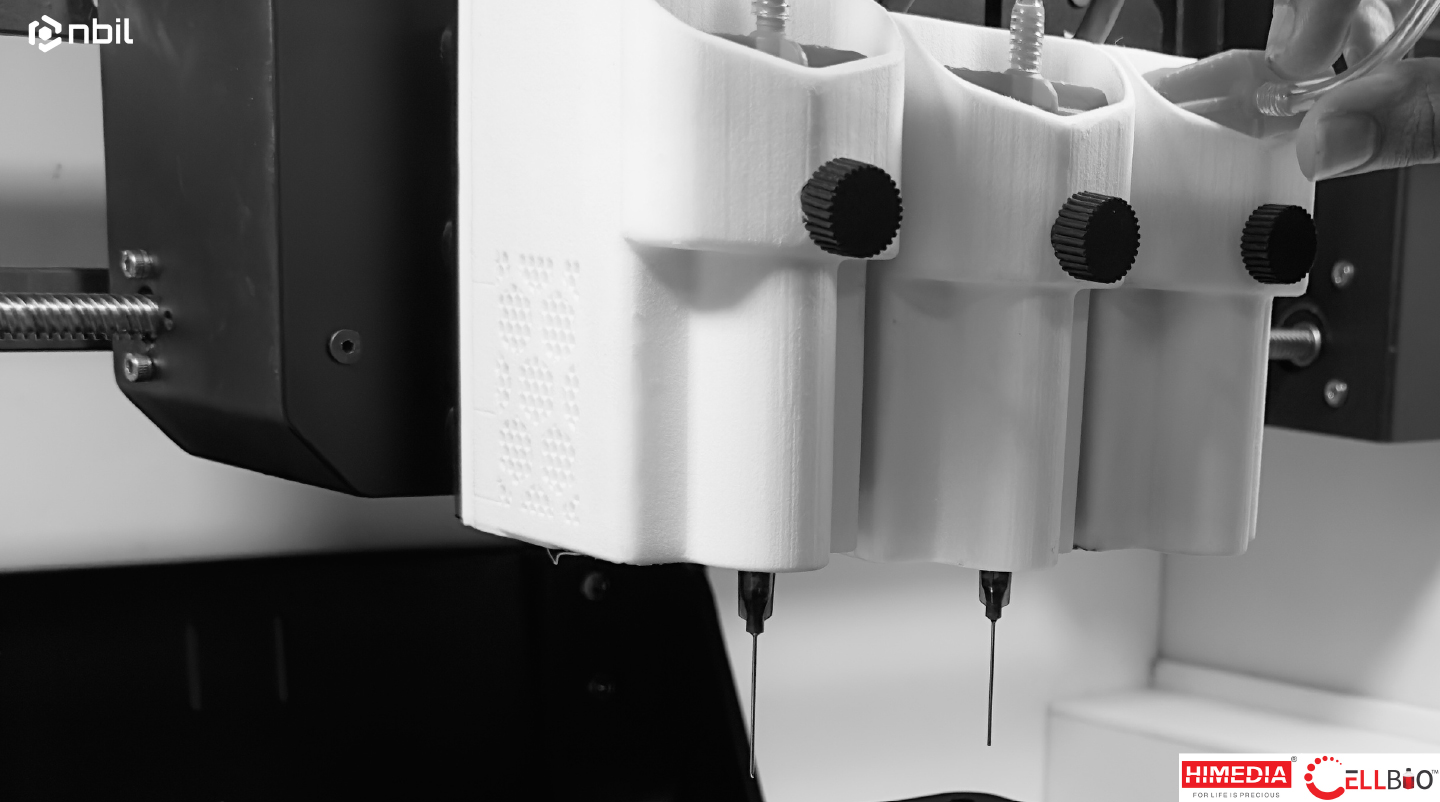

DUAL MODE PNEUMATIC HEADS
Pneumatic Extruders with Temperature Control operated using Trivima's dual mode temperature control system that ranges from 8˚C to 80˚C, Swappable for 3cc, 5cc and 10cc syringe configurations.
Compatible Biomaterials : Natural Biomaterials, Synthetic Biomaterials and Bioceramics
Compatible Biomaterials : Natural Biomaterials, Synthetic Biomaterials and Bioceramics

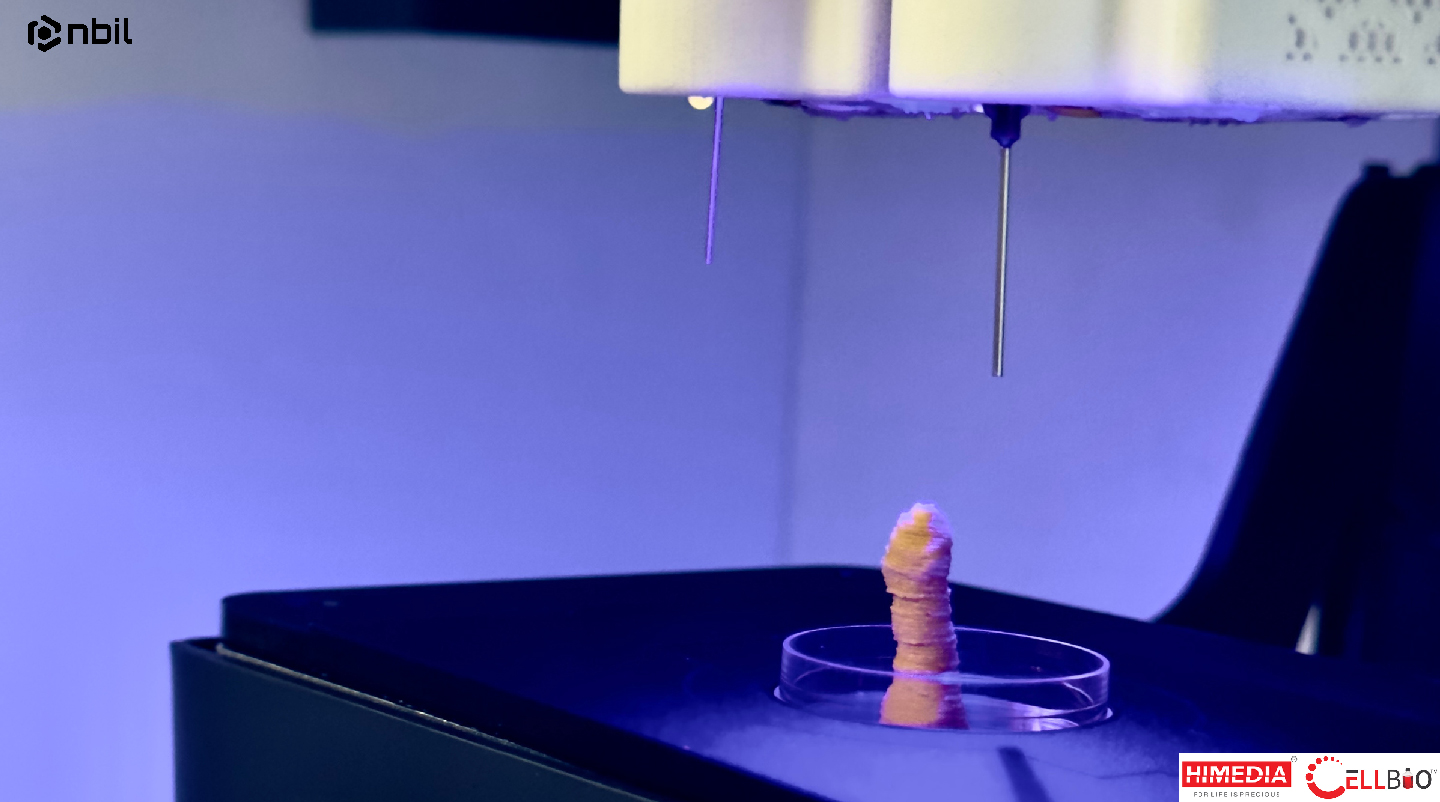

PHOTO HEADS
UV and Visible Light Extruder Heads with diverse wavelengths (365 nm, 405 nm, 485 nm and 520 nm) allow for printing with diverse light crosslinked polymers.
Compatible Biomaterials : GELMA, COLMA and other Light Based Crosslinked Polymers
Compatible Biomaterials : GELMA, COLMA and other Light Based Crosslinked Polymers

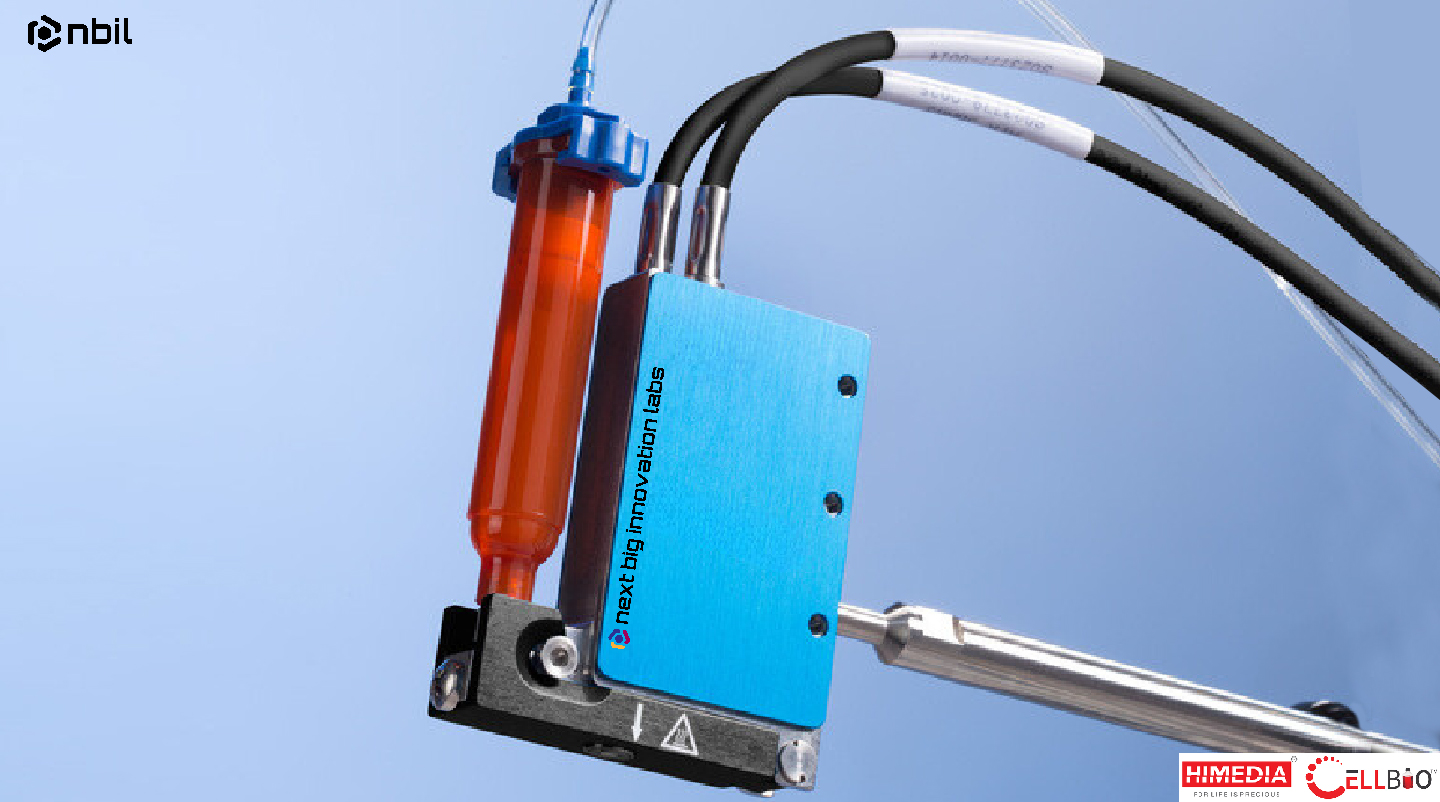

INKJET HEADS
PICO Extruder Heads with Pico Liter dispension technology which allows for precise drop-on-demand applications with upto 0.5 nL droplet dispension.
Compatible Biomaterials : Low viscous natural and synthetic biopolymers and hydrogels
Compatible Biomaterials : Low viscous natural and synthetic biopolymers and hydrogels

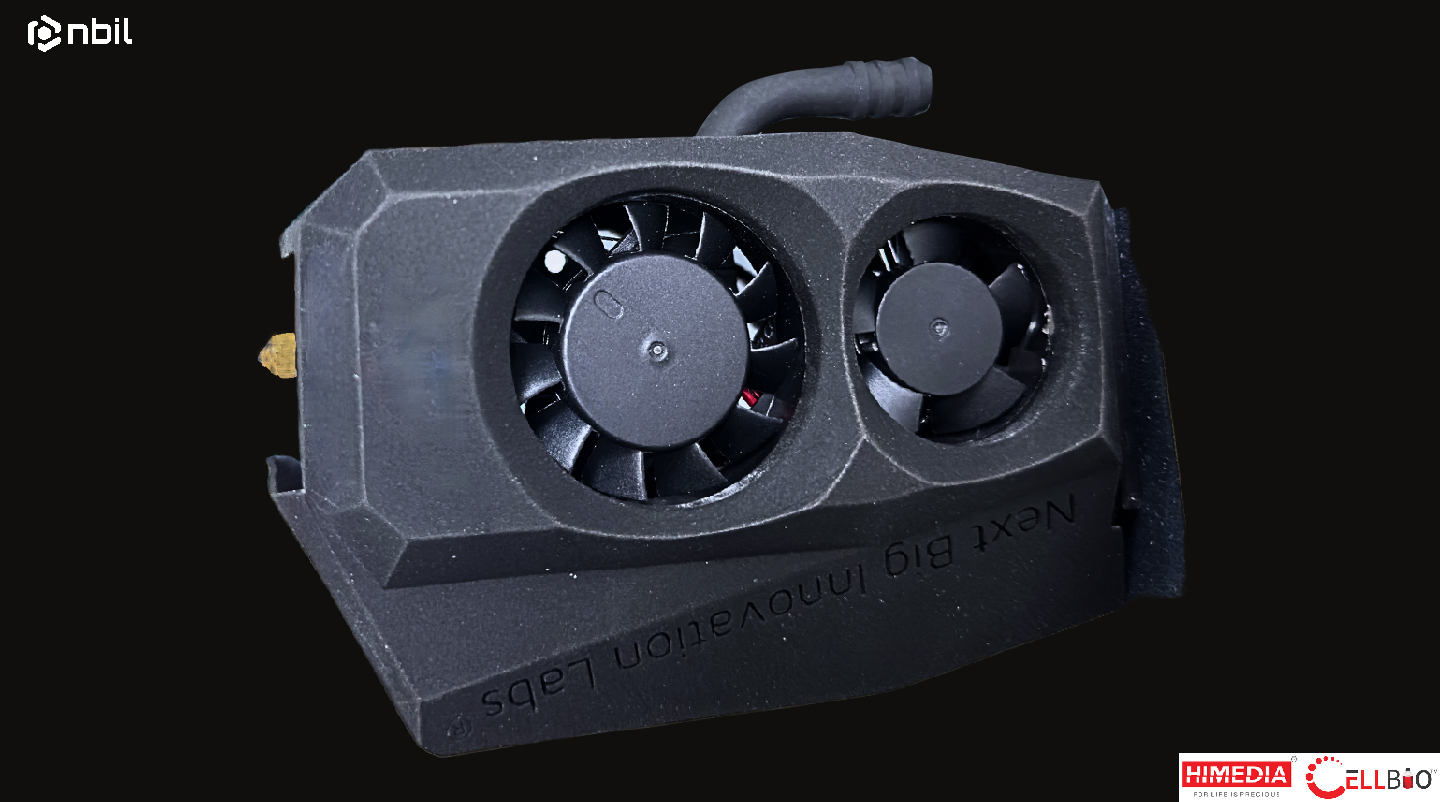

PELLET HEADS
Melt Extrusion Heads with a maximum temperaturerange of 250˚C allow for printing with pellet forms ofsynthetic biomaterials, bioceramics and composites.
Compatible Biomaterials : Bioceramics, Pure syntheticPellets and Bioceramic/Synthetic Composite Pellets
Compatible Biomaterials : Bioceramics, Pure syntheticPellets and Bioceramic/Synthetic Composite Pellets
| Product Name | Trivima Pro 3D Bioprinter |
|---|---|
| SKU | AI0115-1NO |
| Customized Product Available | No |
| Number of Extruder Slots | Minimum of 4 Extruder Slots and Maximum of 6 Extruder Slots |
| Type of Extruders Supported | 3CC, 5CC and 10CC Dual Mode Pneumatic Extruders, Photo Extruders, Inkjet Extruder, Pellet Extruder and FDM Extruder |
| Dual Mode Pneumatic Extruder TemperatureRange | 8˚C to 80˚C |
| Inkjet Temperature Range | RT to 90˚C |
| Pellet Extruder Temperature Range | RT to 250˚C |
| FDM Extruder Temperature Range | RT to 250˚C |
| Bed Temperature Range | 4˚C to 120˚C |
| Build Volume (L*B*H) | 150*100*100 mm |
| In-Built Sterility | H-14 HEPA and Industrial Grade Germicidal UV |
| Substrate Support | Slides, Petri-Plates (All Sizes), Well Plates (All Configurations) |
| Bioprinting Modes | Co-Axial, Tri-Axial, Sacrificial, Tandem and Transwell Bioprinting Modes |
BIOPRINTING MODES AVAILABLEIN TRIVIMA PRO

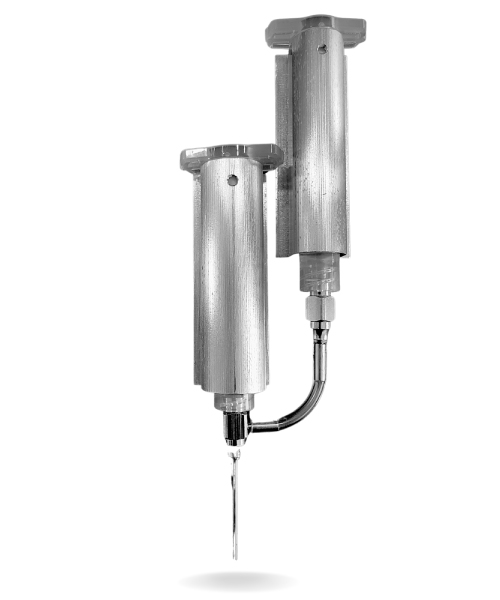

CO-AXIAL:
Coaxial Bioprinting Mode that allows for hollow structure bioprinting applications and for bioprinting complex dual heterogenous structures. Ideal for lumen bioprinting applications

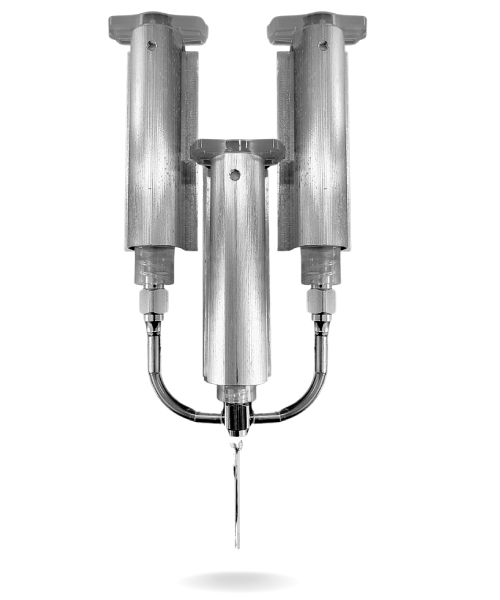

TRI-AXIALTri-Axial Bioprinting Mode that allows for complex hollow structure and heterogenous cell printing with varied pressures, speeds and gauges. Ideal for complex lumen and tissue architecture construction

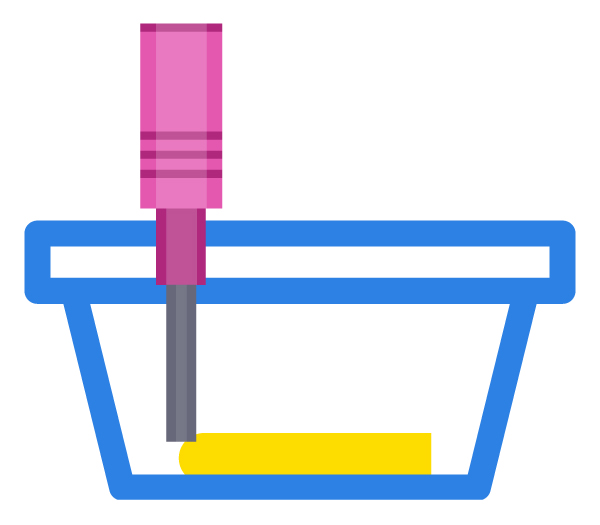

Transwell Bioprinting Mode and Fixtures within 6, 12 and 24 well inserts. Optimised for edge-to-edge bioprinting with a variety of biomaterials. Ideal for skin bioprinting and other soft tissue bioprinting applications.

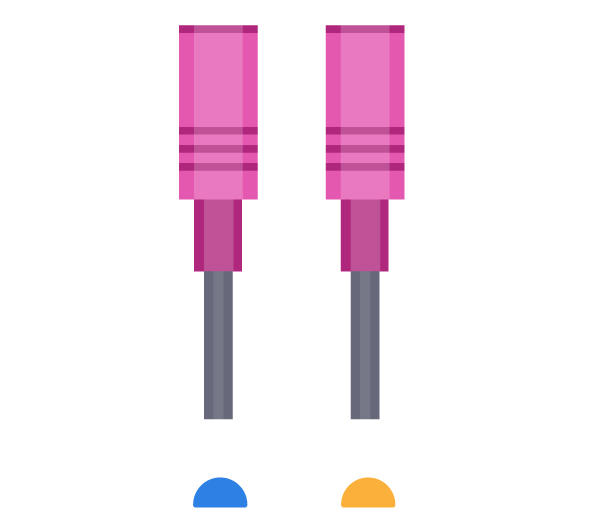

Tandem Bioprinting Mode for effective droplet deposition in 96 and 384 well plates and for precise in-scaffold droplet deposition. Ideal for pharmaceutical applications and for cancer model development

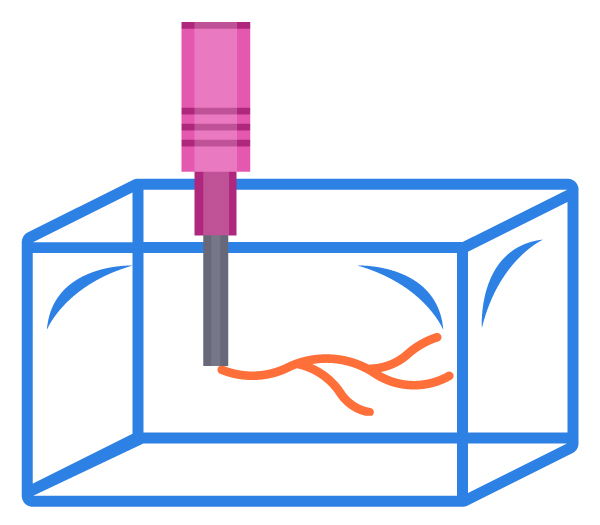

FRESH Bioprinting Mode and Fixtures for printing complicated and intricate architectures within sacrificial gels. Ideal for vasculature, hollow organ and small organ bioprinting
